Product Overview

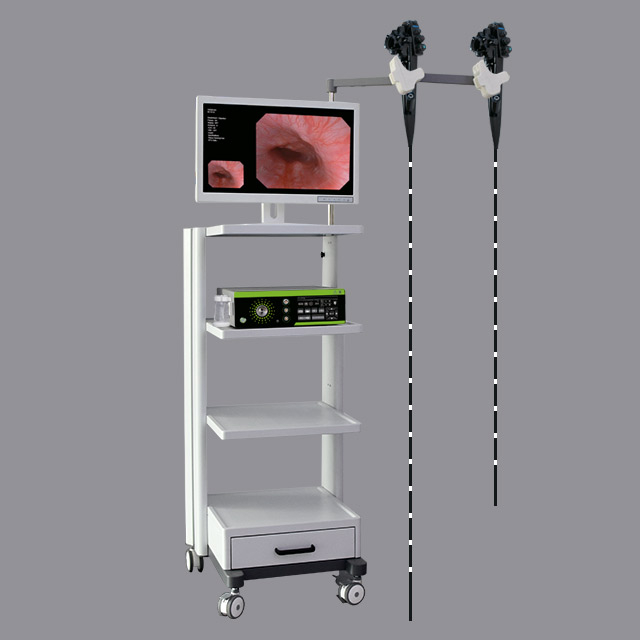

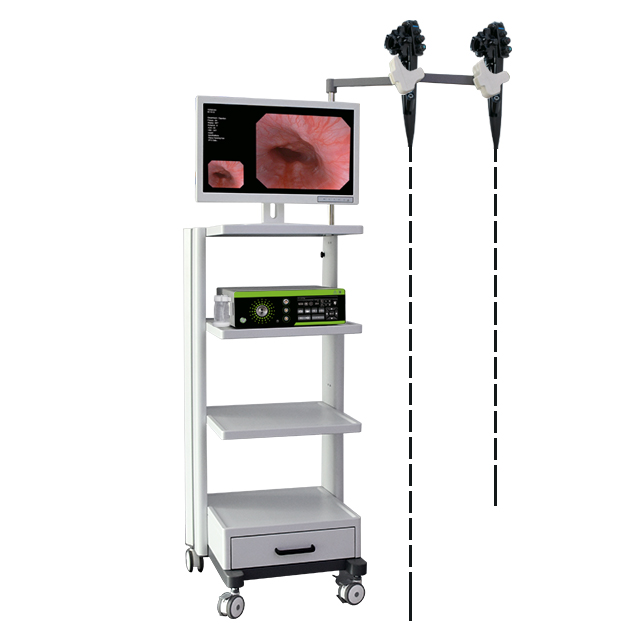

The electronic gastroscope is a cutting - edge medical device. Boasting an outstanding optical system, it provides a wide field of view and sharp, vivid images. The insertion mechanism, designed with user - friendliness in mind, enables smooth and flexible maneuvering. A standout feature is its electronic staining function. This innovative addition allows for a more detailed and distinct visualization of the mucosal layers, facilitating the early detection and precise assessment of potential abnormalities. Complemented by a high - performance video processor and cold light source, it offers a reliable and efficient solution for gastrointestinal endoscopic procedures.
| ltem | Gastrointestinal Scope | Gastrointestinal Scope | Gastrointestinal Scope |
| Model | FNK-60101 | FNK-80101 | FNK-12901 |
| Field of View | 140° | 140° | 140° |
| Depth of Field | 3-150mm | 3-150mm | 3-150mm |
| Angulation(for FlexibleScopes) | Up 210°, Down 9o°LeftRight 100° each | Up 210°, Down 9o°LeftRight 100° each | Up 210°, Down 9o°LeftRight 100° each |
| Insertion TubeDiameter | 6mm | 8mm | 12.9mm |
| Instrument Channel | 2.0mm | 2.0mm | 3.8mm |
| Working Length | 1200mm | 1500mm | 3000mm |
| lmage Resolution | 1 Megapixel | 1 Megapixel | 1 Megapixel |
| ltem | Bronchoscope | Bronchoscope | Arthroscope | Laparoscope |
| Model | FNK-60101 | FNK-80101 | FNK-18101 | FNK-12901 |
| Field of View | 120° | 120° | 120° | 140° |
| Depth of Field | 3-80mm | 3-80mm | 3-80mm | 3-150mm |
| Angulation(for FlexibleScopes) | Up/Down 180° each LeftRight 180° each | Up/Down 180° each LeftRight 180° each | —— | —— |
| Insertion TubeDiameter | 2.5mm | 2.8mm | 1.8mm | 5mm |
| Instrument Channel | 1.2mm | 1.2mm | —— | —— |
| Working Length | 680mm | 680mm | 175mm | 330mm |
| lmage Resolution | 0.5 Megapixel | 0.5 Megapixel | 0.5 Megapixel | 2 Megapixel |
Multifunctional Ultra-fine Endoscope
When paired with single-lumen or triple-lumen endoscopic sheaths, the device enables irrigation, biopsy, and foreign body retrieval—addressing diverse clinical scenarios.Suitable for: Dogs, cats, rabbits, tortoises, rats, snakes, etc.

lmage processor
HD image processor: powerful, brightness, colour and contrastadjustable from 0-100 levels, supportsHDMl HD signal output
Resolution: 1 million HD pixelsViewing angle:140 degreesAuto/Manual White Balance: Auto/ManualSensor technology:CMoS
Video output: HDMI, USB, VGA
lmage video storage: USB stick for direct photo and video saving
Resolution: 2 Megapixels
Diameter: 5 mm
Length: Customizable with multiple options (210–280 mm, 310–330 mm, 450 mm, 550 mm, 680 mm, 800 mm, 1000 mm)
Indicated for: Lions, tigers, elephants, horses, kangaroos, etc.
LED Light Source
Spectrum Range: 400-700nm
LED power: 100WLED illumination: ≥20W Lx
Life: 20,000 hours
Color Temperature: ≥5500KAir pressure: 30~60KPa, air flow: 4~10L/minAir pump adjustment: 0 to 3 is adjustablePower supply: AC 85~264V
Key Features
Integrated Advanced Imaging Technologies (LCI & NBI):
1. LCI (Linkage Imaging Technology): As a novel image-enhanced endoscopy technology, LCI excels in rapidly and accurately detecting suspicious lesions, which helps shorten diagnostic time for pets. Its unique strength lies in observing subtle changes in mucosal morphology and color—an advantage that holds significant value in veterinary practice, such as identifying early mucosal abnormalities in pets' oral cavities, nasal passages, or gastrointestinal tracts, and assisting in judging conditions like oral mucosal inflammation or early-stage gastrointestinal lesions similar to those related to Helicobacter pylori in humans.
2. NBI (Narrow-Band Imaging): This emerging endoscopic technique has extensive applications in veterinary diagnostic fields, covering almost all areas requiring endoscopic examination, including urology, gastroenterology, gynecology, and otolaryngology for pets. By utilizing narrow-band light, NBI enhances the contrast between mucosal surfaces and blood vessels, enabling veterinarians to detect minor lesions (such as early-stage small tumors or subtle inflammatory changes) that might be missed by conventional imaging. This facilitates timely intervention and treatment, ultimately improving the prognosis and quality of life for sick pets.
High-definition image output
Main prcessor not only used as a gastroscope, but also adds an electronic scope output interface in front of the host, which can be connected to the nasopharyngoscope, bronchoscope and choledochoscope for convenient use.Modern gastroenteroscopy generally adopts CMOS or CCD image sensor, combined with HDTV full HD output mode, to ensure clear and delicate images. with high sensitivity, high sharpness of the image quality, can truly reflect the situation of the inspected part.
Gastroscope & Colonoscope Applications
Endoscopy is used for examination, biopsysampling, foreign body removal, and smalltumor excision in the oral cavity,esophagusstomach,duodenum,colon,andotherlocations in dogs and cats.
Bronchoscope Clinical Applications
Bronchoscopyis used for examination andbiopsy sampling in the bronchi, nasal cavityear canals, and bladder of dogs and cats. lt isalso used for examination, biopsy sampling.and foreign body removal in the oral cavity,esophagus,stomach,duodenum,colon,andother locations in exotic pets.
Arthroscope Clinical Applications
Arthroscopy is used for joint examination,examination and biopsy sampling in the nasalcavity,ear canals,and otherlocations in dogsand cats.ltis also used for examination in theoral cavity,nasal cavity,ear canals,trachea,stomach,colon,vagina,cloaca,abdominal/cavity,and thoracic cavity in exoticpets.
Technical basis: Modern gastroenteroscopy generally adopts CMOS or CCD image sensor, combined with HDTV full HD output mode, to ensure clear and delicate images.
Image quality performance: with high sensitivity, high sharpness of the image quality, can truly reflect the situation of the inspected part.
Water-Air ChannelIt
ensures sustained clarity of the visual field during procedures, laying a solid foundation for efficient and safe examinations and treatments.

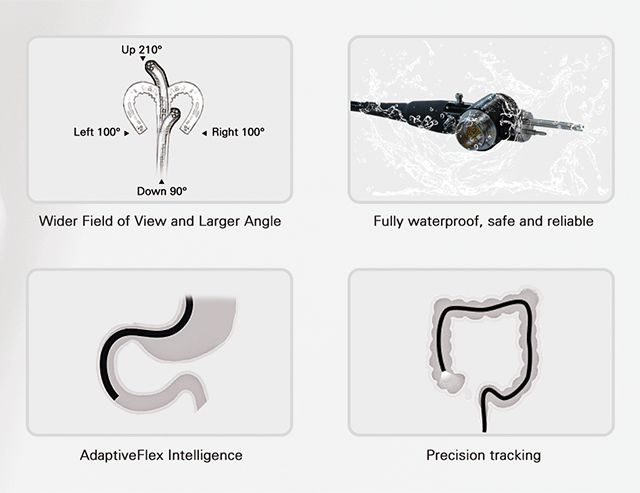

Flexible bending properties
Bending Angle: The bending Angle of the gastroscope is usually ≥210° up, ≥90° down, ≥100° left, ≥100° right, while the bending Angle of the enteroscope may be larger, such as ≥180° above, ≥180° down, ≥160° left, ≥160° right.
Bidirectional bending mode: Some gastroenteroscopes have a flexible bidirectional bending mode that makes it easier to examine the lining of the gastrointestinal tract.
Accurate viewing distance and field of view
Observation distance: The observation distance of the gastroenteroscope is usually between 2mm and 100mm, and it has a close-focus observation function, which can automatically focus and achieve about 60 times magnification observation.
Visual field: The visual field Angle is generally ≥140°, ensuring that the doctor can clearly observe the whole picture of the examined site.
Comfortable operating experience
Endoscopic design: The endoscopic design of gastroenteroscopes is usually slim to reduce patient discomfort and increase the likelihood of insertion into the narrow site.
Operation performance: New operating parts based on ergonomic design, such as G7 handle, feel more fit, can meet the needs of smooth one-hand operation.
Advanced additional features
Front water injection function: During examination or treatment, it can clean mucus and bleeding, maintain clear vision, and improve safety.
Special light patterns, such as electron staining pattern (NBI), can emphasize the fine structure of the lesion edge and interior, and improve the diagnosis rate of early cancer.
Wireless connection technology: Some gastroenteroscopes have wireless insertion and wireless connection technology, which is convenient for doctors to remote operation or data transmission.
Compatibility and maintenance
Compatibility: The gastroenteroscopy is usually compatible with the department's existing HD colonoscopy host and can achieve a variety of examination and treatment functions.
Easy maintenance: with a fully waterproof design, no need to wear a waterproof cap when cleaning and disinfecting, simplifying the operation process.
