Endoscopy Surgery Dynamic System


Availability:

Quantity:



Inquire Add to Basket

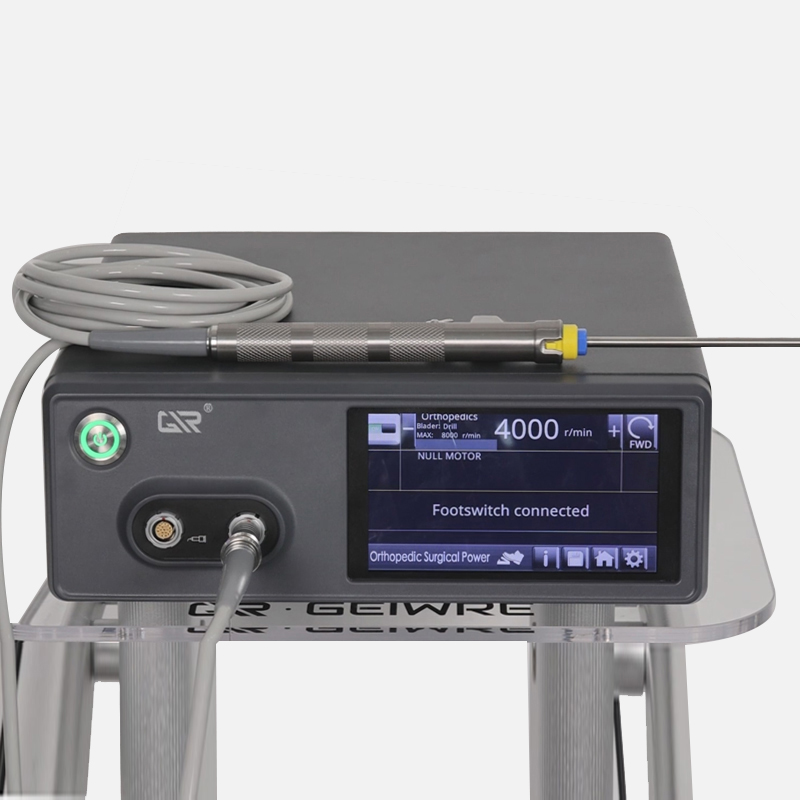

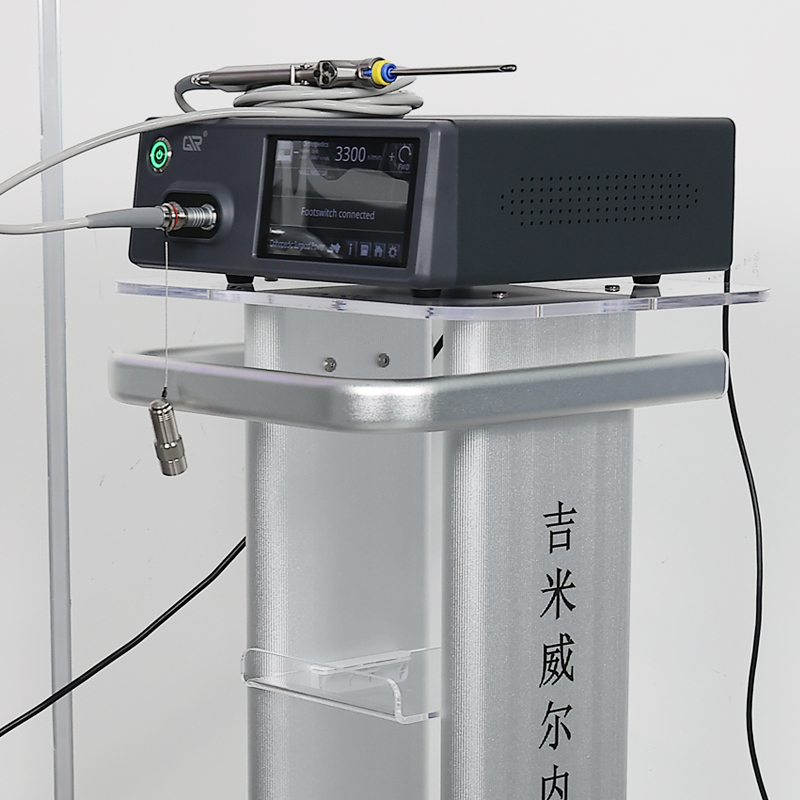

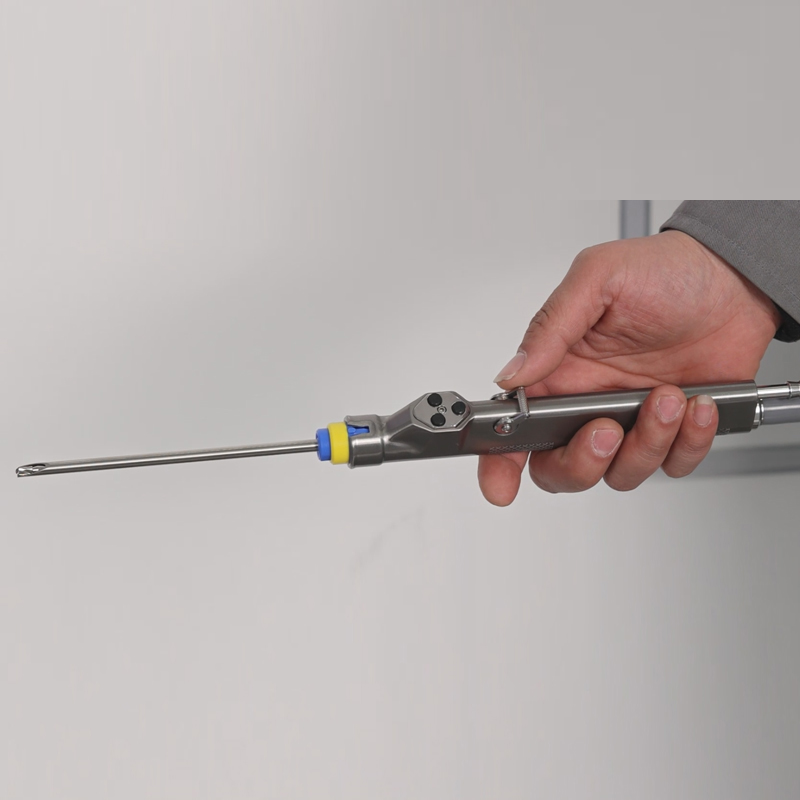

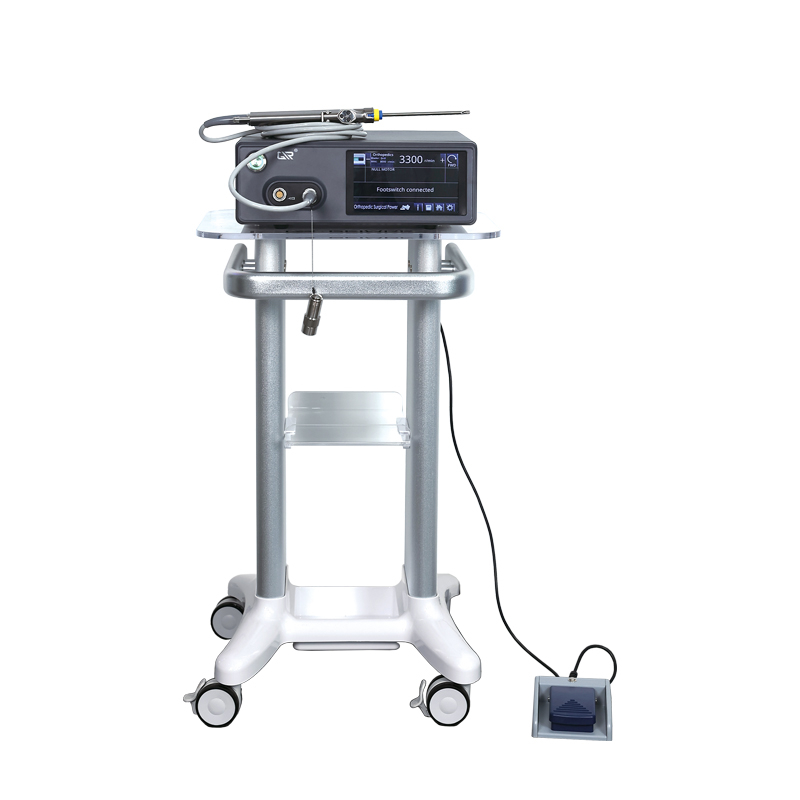

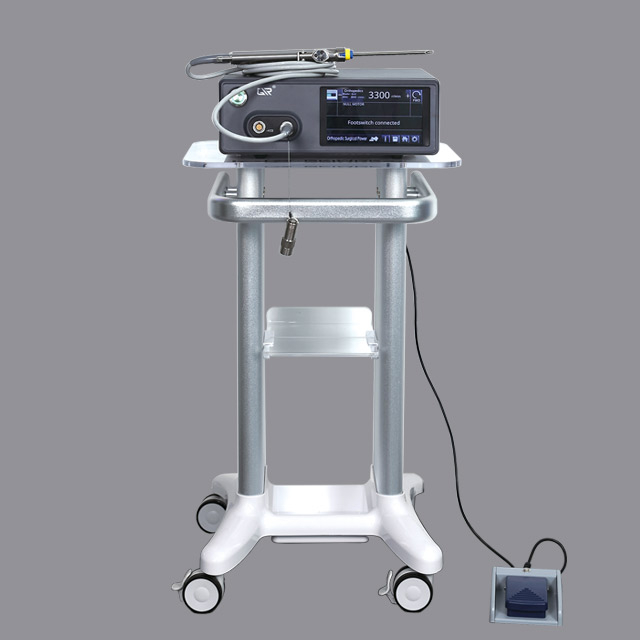

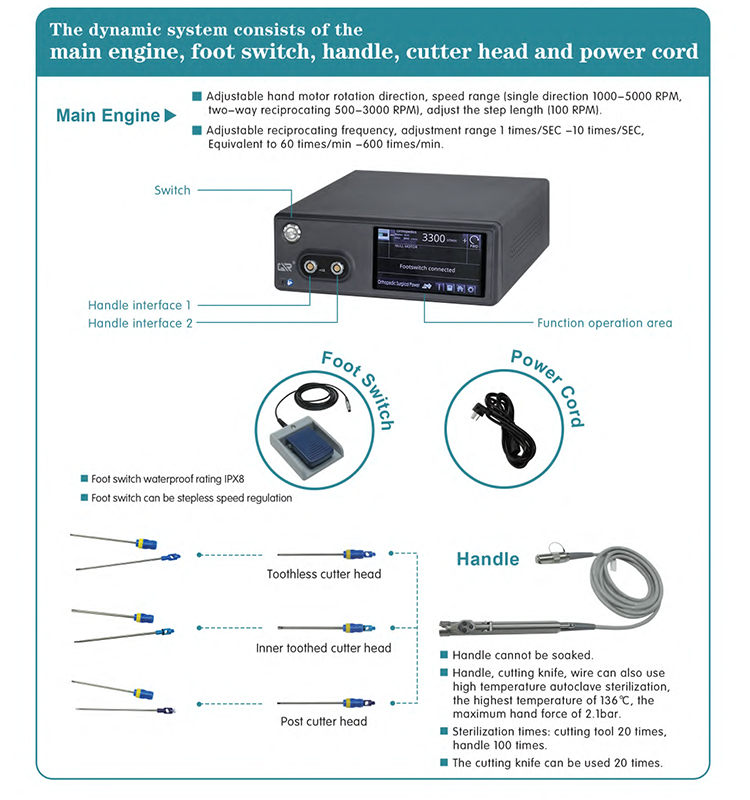

The Dynamic System is an advanced surgical power tool designed to enhance precision in theoperating room.Built to run on a stable 220V,50Hz power supply with an input power of220VA,it offers a user-friendly touch screen interface for easy control.With features such asadjustable rotation(clockwise or counterclockwise)and variable speed control,this system isengineered to meet the diverse demands of modern surgical procedures.Its robust design,complete with a 1.5-meter power cord and waterproof components,ensures reliable performanceeven in the most challenging environments.

Model:
GEV-DL06
Brand:
Geiwre

Product Parameters

Product Advantages

Hospital Practice

Ambient Temperature: 5℃~30℃
Power Supply: ～220V;50Hz
Relative Humidity: ≤80%Rh
Input Power: 200VA
Atmospheric Pressure: 860hPa~1060hPa

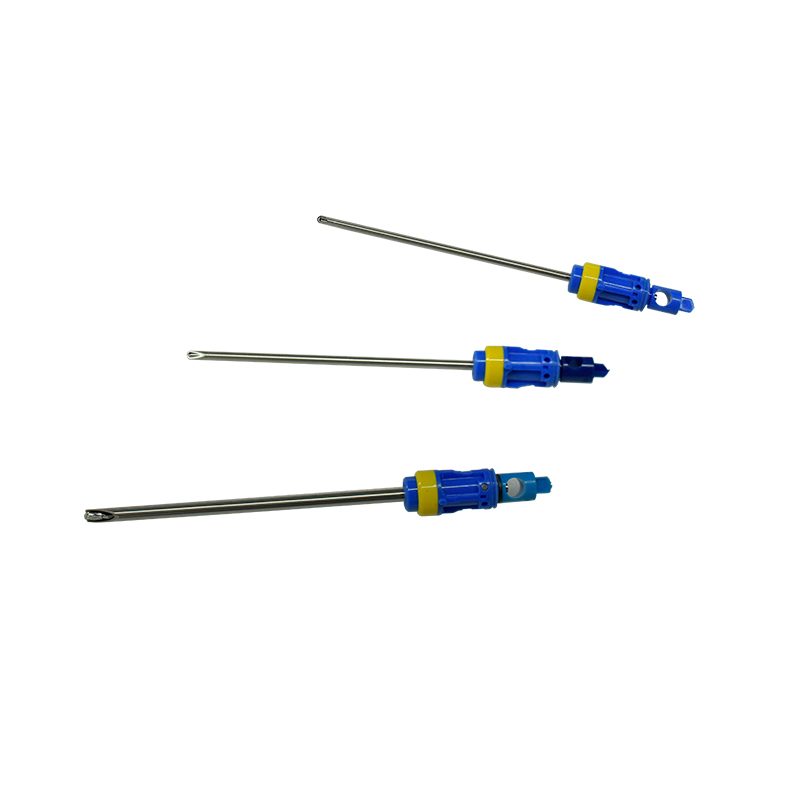

Tool Name	Outer Diameter	Working Length	Water Flush Joint
Double tooth straight cutting knife	Ø 4±0.05mm	96mm	Yes
Double-toothed 40°incamber cutting knife	Ø 4±0.05mm	96mm	Yes
Double tooth 40°outer bend cutting knife	Ø 4±0.05mm	96mm	Yes
Double tooth 60°inner bend cutting knife	Ø4±0.05mm	96mm	Yes
Double tooth straight cutting knife	Ø4±0.05mm	340mm	No
Double tooth straight cutting knife	Ø4.8±0.05mm	340mm	No
Longitudinal cutting knife	Ø4±0.05mm	332mm	No
Double-toothed straight cutting knife	Ø3±0.05mm	390mm	No
Double tooth straight cutting knife	Ø4±0.05mm	390mm	No
Double tooth straight cutting	Ø4.8±0.05mm	390mm	No
Watermelon head cutting knife	Ø2±0.05mm	70mm	No
Watermelon head cutting knife	Ø5±0.05mm	70mm	No
Ball head emery grinding head	Ø2±0.05mm	70mm	No
Ball head emery grinding head	Ø5±0.05mm	70mm	No
double tooth straight cutting knife	Ø3.0±0.05mm	70mm	No
double tooth straight cutting knfe	Ø4.2±0.05mm	130mm	No
Watermelon head cutting knife	Ø2.9±0.05mm	70mm	No
Watermelon head cutting knife	Ø5.9±0.05mm	130mm	No

High Precision

Features adjustable rotation speed and torque to adapt seamlessly to diverse surgical demands.
Ensures every cut and drill is executed with meticulous accuracy,thus reducing potential errors during complex procedures.

Minimized Trauma

Replaces traditional bone chisels and hammers to significantly reduce damage to soft tissues.
Protects surrounding healthy areas during delicate operations.

High Efficiency

Employs a high-speed rotation design that enhances surgical efficiency.
Contributes to faster procedures and reduced operative times.

Enhanced Safety

Built-in safety features include overload protection,low noise,and minimal vibration.
Creates an optimal operating environment that ensures both surgeon comfort and patient safety.

Orthopedic Surgeries

Fracture Repair:The system is adept at drilling precise holes for the insertion of bone nails, screws,or steel plates to securely fix fractures.
Joint Replacement:During hip or knee replacement procedures,it is used to refine bone surfaces ensuring optimal prosthetic alignment and fit.
Bone Tumor Resection:Its high precision minimizes damage to surrounding healthy tissue when removing diseased bone,thereby enhancing patient outcomes.

Spinal Surgeries

Laminectomy Decompression:Surgeons utilize the system to remove portions of the vertebral lamina during lumbar spinal stenosis operations,effectively relieving nerve compression.
Spinal Fusion:It aids in reshaping vertebral surfaces,facilitating the implantation of bone grafts or fixation devices to achieve solid spinal fusion.

·Other Applications

Bone Marrow Puncture:The Dynamic System's precision supports safe and accurate bone marrow sampling for pathological analysis.
Minimally Invasive Procedures:When teamed with advanced endoscopic techniques— such as Unilateral Biportal Endoscopic(UBE)surgery or percutaneous endoscopy—the system enables precise bone tissue operations while minimizing trauma.
