HD-2410W-4k
Geiwre
This series of medical endoscopic monitors is designed to meet the rigorous demands of minimally invasive surgeries and endoscopic procedures. Available in five models—2110 (21″), 2410 (24″), 2710 (27″), 3210 (32″), and 5510 (55″)—the lineup provides flexible imaging solutions for a wide range of clinical settings, from diagnostic exams to complex surgeries.
Compliant with medical device standards, each monitor integrates professional-grade medical displays optimized for endoscopy, delivering exceptional clarity, accurate color fidelity, and lifelike visualization for reliable intraoperative guidance.
All models support Full HD (1920×1080) for sharp and detailed imaging. The 2710, 3210, and 5510 can be upgraded to 4K UHD (3840×2160), providing ultra-high-definition visualization of fine anatomical structures to support precise clinical decision-making.
Ideal for ORs, endoscopy suites, and ambulatory surgery centers, this series combines high performance, regulatory compliance, and scalable image technology to advance patient care.

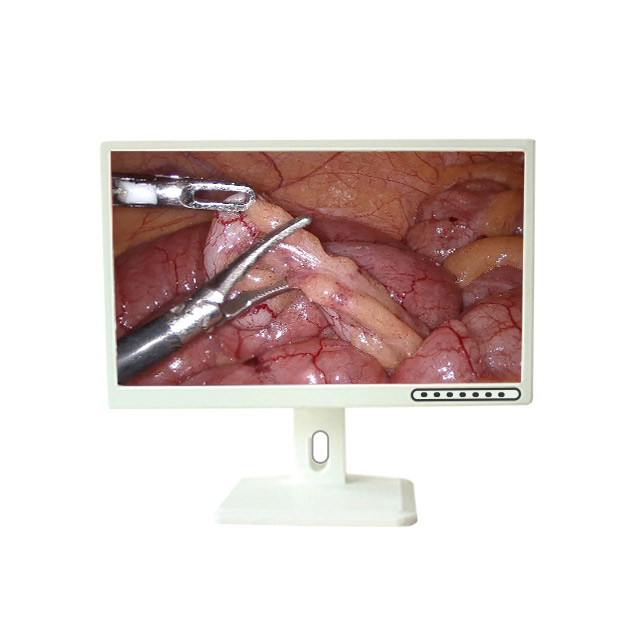

24-inch 4K LED Medical Monitor Product Specifications
| Backlight | LED |
| Diagonal Size | 23.8” |
| Display Area Size | 527.04(H)x296.46(V)mm |
| Resolution | ≥3840x2160 |
| Pixel Pitch | Time (typ):5ms |
| Max Brightness | 900 cd/m2 |
| Contrast Ratio (typ) | 1000:1 |
| Color Depth (LUT) | 68.7 Billion Colors (12bit) |
| Viewing Angle | >178° |
| Lookup Table | GAMMA 2.0, GAMMA 2.2,DICOM |
| Video Input | HDMI 4K x1.HDMx2.DP x1 |
| Video Output | PHONE x1 |
| Options | SDl |
| Power Output | DC 5VIA (USB-A) |
| Power Requirements | 100~240Y AC,50/60 HZ |
| Max Power | 96W |
| Standard Power | ≤70W |
| Case Color | White |
24-inch 4K LED Medical Monitor Key Features
Comprehensive Model Range: Includes five models (2110, 2410, 2710, 3210, and 5510) with screen sizes from 21 to 55 inches, supporting diverse clinical applications from basic endoscopy to complex minimally invasive surgeries.
Medical Standard Compliance: Strictly adheres to medical device regulations, ensuring safety and reliability in clinical environments.
Professional Medical Display Panels: Optimized for endoscopic imaging, providing clear, true-to-life visualization for accurate surgical guidance.
Full HD Resolution: All models support 1920×1080 resolution for high-quality image output.
Upgradable 4K UHD Capability: The 2710, 3210, and 5510 models can be upgraded to 4K Ultra HD (3840×2160), delivering exceptional detail for precise tissue observation.
Enhanced Surgical Precision: Designed to improve intraoperative visualization and support meticulous endoscopic examination and procedure execution.
Minimally Invasive Surgeries: Provides clear, real-time visualization for procedures such as laparoscopy, arthroscopy, and thoracoscopy.
Endoscopic Examinations: Supports gastrointestinal, bronchoscopic, urological, and gynecological endoscopy with high-definition imaging.
Complex Surgical Procedures: Facilitates detailed tissue observation and precision guidance in neurosurgery, cardiac surgery, and other delicate operations.
Operating Rooms and Hybrid Suites: Designed for integration into modern surgical environments requiring reliable, high-resolution display systems.
Teaching and Live Demonstrations: The large-size models (e.g., 55-inch) allow for easy viewing in educational settings and live surgery broadcasts.

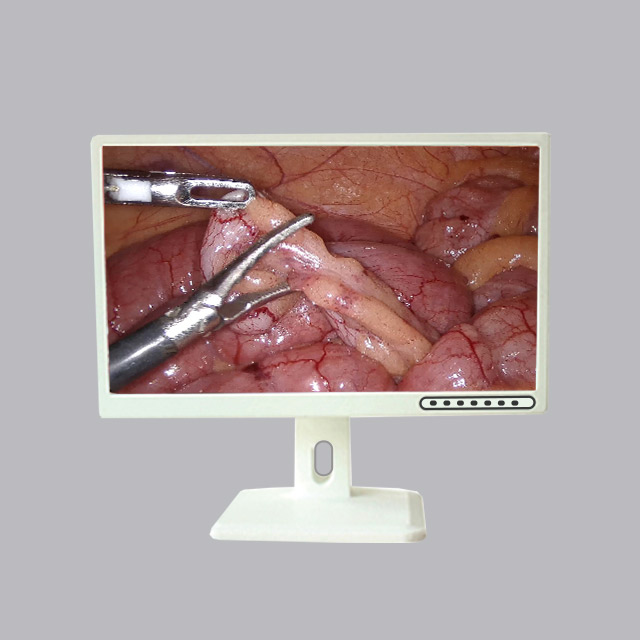

24-inch 4K LED Medical Monitor
1. Superior Endoscopic Image Optimization
Adjustable brightness (450–1100 cd/m²), with the 3210 and 5510 models reaching up to 1100 cd/m², ensuring clear endoscopic imaging under various surgical lighting conditions.
Professional-grade color reproduction, with the 2710 and above models supporting 16.7 million colors for accurate tissue hue representation.
178° ultra-wide viewing angle, allowing surgical teams to view images without color distortion from different angles.
2. Performance Optimized for Endoscopic Surgery
High refresh rate and nanosecond-level response time (2710 model), eliminating motion blur during endoscopic movement.
Intelligent image enhancement technology automatically optimizes shadow details for clear visualization of cavity structures.
Multiple preset modes (Normal/Vascular Enhancement/Tissue Enhancement, etc.) for quick adaptation to different surgical needs.
3. Professional Endoscopic Interface Configuration
Standard HDMI and DVI interfaces for direct connection to various endoscopic camera systems.
High-end models feature BNC professional video interfaces for compatibility with traditional endoscopic equipment.
The 5510 model supports multi-input display, simultaneously showing endoscopic images and other monitoring data.
4. Operating Room-Specific Design
Anti-glare and anti-reflective treatment to minimize interference from surgical lighting.
Full metal housing with IP54 protection, resistant to disinfection and cleaning in the OR.
Ergonomically adjustable stand with multi-angle rotation for optimal team viewing.
5. Reliable Surgical Support
Dual power backup (3210/5510 models) ensures uninterrupted display during surgery.
Ultra-low latency transmission technology for real-time image synchronization.
24/7 continuous operation stability for prolonged surgical procedures.
Laparoscopic Surgery Centers
The 3210 and 5510 large-screen monitors are ideal for laparoscopic surgeries, with 4K UHD resolution clearly displaying fine tissue structures and high brightness ensuring visibility under surgical lights. Multi-screen display functionality allows simultaneous viewing of multiple endoscopic angles.
Gastrointestinal Endoscopy Suites
The 2410 and 2710 monitors, paired with GI endoscopes, provide accurate color reproduction for detecting mucosal lesions, with image enhancement highlighting vascular patterns to aid in early diagnosis.
Urological Surgery
The 2710 model’s high dynamic performance perfectly displays ureteroscopic and nephroscopic images, with nanosecond response time ensuring no motion blur during lithotripsy, supporting precise surgical maneuvers.
Arthroscopic Surgery
The compact 2110 and 2410 monitors can be flexibly mounted on arthroscopic carts, with wide viewing angles facilitating multi-angle observation by surgical teams and high contrast for clear cartilage and ligament details.
Hysteroscopic Procedures
The full series supports DICOM-standard gynecological color presets, with the 3210 model’s large screen being particularly suitable for hysteroscopic surgeries, featuring multiple interfaces for simultaneous ultrasound imaging display.
ENT Endoscopy
The 2110 small-sized monitor is perfect for ENT applications, mountable on walls or dedicated stands, with fast response time for capturing dynamic imaging during delicate sinus and laryngeal procedures.
Neuroendoscopic Surgery
The 5510 ultra-large screen provides an immersive surgical view, with 4K resolution clearly displaying nerve fibers and vascular relationships, while multi-input interfaces allow simultaneous navigation system data display.
This series of endoscopic monitors employs specialized optical processing and image optimization algorithms to ensure true-to-life reproduction of anatomical structures. Designed for OR environments, they feature antibacterial coatings, corrosion resistance, and easy cleaning, supporting various sterilization methods. From basic endoscopy to complex minimally invasive surgeries, we provide a complete endoscopic display solution to advance precision medicine.
