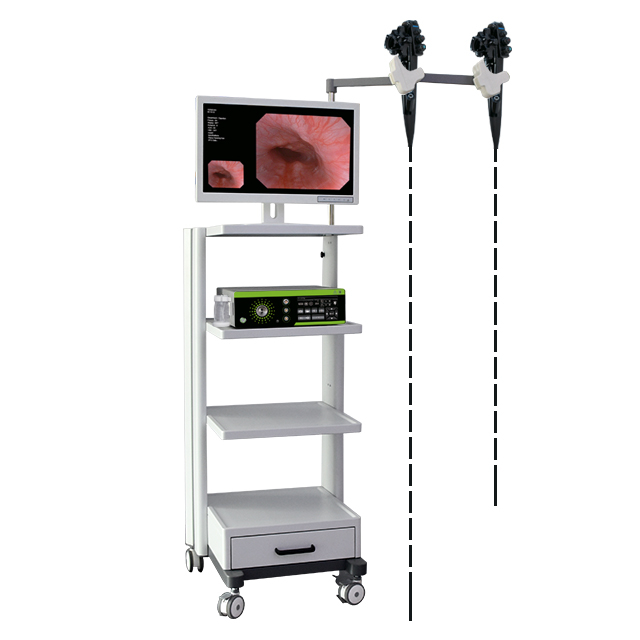

Advanced HD Imaging for Gastroscopes & Colonoscopes

1. It is not only used for gastroscopy and colonoscopy. An electronic mirror output interface is added to the front of the main unit, which can be connected to nasopharyngoscopy, bronchoscopy and biliary tract endoscopy, making it convenient to use.

2. The main unit is equipped with a camera, light source and air pump, and also has a negative pressure suction function, making it multi-functional.

3. The full touch glass panel ensures flexible touch control even when wearing protective gloves, making operation convenient and the entire machine high-end and sophisticated.

4. The main unit is equipped with an automatic light sensing function, which can automatically adjust the light intensity according to the actual scene, providing a better visual effect.

5. The main unit is equipped with an electronic staining function, which enables the observation of underlying lesions.

6. The main unit is equipped with a hemoglobin enhancement function, making the display of capillaries clearer and more convenient for observation.

7. The host can record videos with one click, take photos with one click, and capture photos during recording. It also enables the host to directly view pictures and play video recordings, allowing for timely and clear identification of difficult problems.

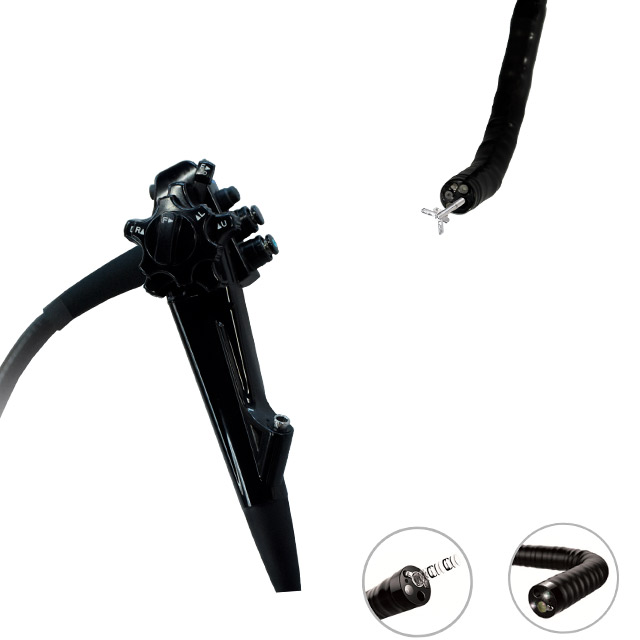

The handle of the gastroscopy and colonoscopy is equipped with five button functions: white balance, freeze, photo taking, video recording, and hemoglobin enhancement function.

9. Four-direction bending, locking, and when the bending reaches the limit, it can also move at the viewing Angle, etc., truly providing unobstructed visual observation.

10. Freezing and real-time image display functions

11. The interface displays the case function, hemoglobin display, and simultaneously shows the machine model, gastroscopy diameter, number, etc., facilitating doctors to directly and clearly understand the machine status.

The monitor is compatible with 1920*1080 and 3840*2160, featuring picture-in-picture functionality. It can directly display two video signals, achieving a dual-mirror combined function, which is convenient for doctors to observe and use.

13. The main unit can be connected to reusable gastroscopy, colonoscopy, nasopharyngoscopy, bronchoscopy, biliary tract endoscopy, ureteroscopy, and can also be connected to various disposable series of electronic endoscopes.

14. The main unit is equipped with five-level electronic magnification, dead point repair, image enhancement, saturation + chromaticity adjustment, mirror image inversion and other functions.

Knowledge of electronic staining in electronic gastroscopy and colonoscopy: LCI, BLI, and NBI each represent different techniques and application fields. The following is a detailed explanation of them:

I. LCI (Linked Color Imaging)

LCI is the abbreviation of Linkage Imaging Technology, which is a new type of image enhancement endoscopy technology. It illuminates the mucosal surface by combining specific short-wavelength narrowband light with white light, highlighting the information of the surface blood vessels and surface structures of the mucosa while ensuring the brightness of the visual field. The LCI mode reconfigments the colors. After adding the red emphasis signal, the contrast of mucosal colors is enhanced, enabling better identification of minute color differences in mucosal colors and thereby improving the diagnostic accuracy of digestive tract mucosal lesions.

The application of LCI in the medical field is mainly in endoscopic diagnosis. It can detect suspicious lesions more quickly and accurately, which is conducive to shortening the operation time. Meanwhile, LCI has unique advantages in observing subtle changes in mucosal morphology and color. For instance, it has significant application value in determining clinical Helicobacter pylori infection, diagnosing intestinal metaplasia, and diagnosing early gastric cancer.

Ii. BLI (Biolayer Interferometry)

BLI is the abbreviation of biofilm interferometry, a label-free technique used to measure the interaction between biomolecules. It utilizes optical fiber biosensors to detect in real time the changes in the thickness of the sensor's optical layer during molecular binding and dissociation, and directly quantifies the interactions between molecules in real time in microplates through immersion ready-to-read biosensors.

BLI technology is widely applied in fields such as new drug development, new drug production, and vaccine research and development. It can monitor the interaction of biomolecules in real time, precisely and accurately monitor binding specificity, binding and dissociation rates or concentrations, providing a powerful tool for scientific research.

Iii. NBI (Narrow Band Imaging)

NBI is the abbreviation of endoscopic Narrow-band imaging, which is an emerging endoscopic technique. It uses a filter to remove the broadband spectrum in the red, blue and green light waves emitted by the endoscopic light source, leaving only the narrowband spectrum for diagnosing various diseases of the digestive tract. NBI technology can precisely observe the morphology of the mucosal epithelium of the digestive tract and the morphology of the epithelial vascular network, thereby improving the accuracy of endoscopic diagnosis.

The application of NBI in the field of medical diagnosis is very extensive, covering almost all areas that require endoscopic diagnosis. In departments such as urology, gastroenterology, gynecology and otolaryngology, NBI light sources are widely used for the early screening and diagnosis of various diseases. It can help doctors detect minor lesions, take timely treatment measures, and improve the survival rate and quality of life of patients.

To sum up, LCI, BLI, and NBI are all advanced technologies in their respective fields and play significant roles in different application scenarios.

Q: Does your company provide certificates？

yes，ce，ISO13485.

Q: Do your gastroscopy and colonoscopy have 4k resolution?

yes ,we can customize ,hd,4k,etc.

Q: Can you offer personalized customization?

we are factory ,we can provide customization,logo,opening image,etc according to your requirements.
