HD-370
GEIWRE
Product Overview

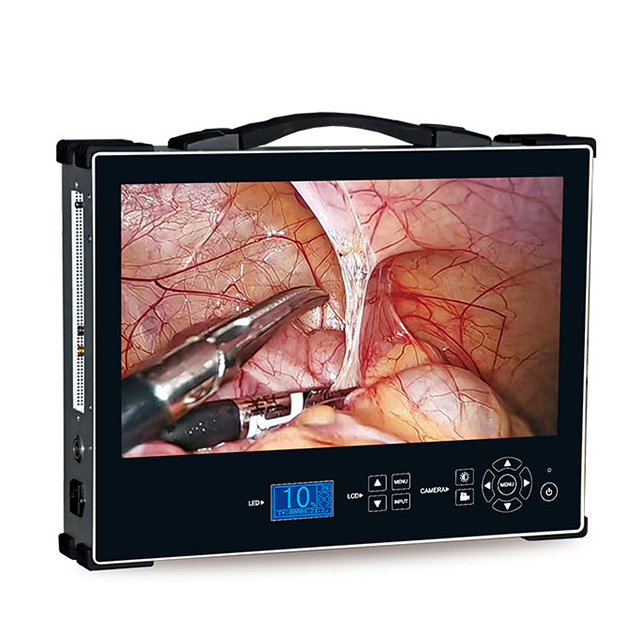

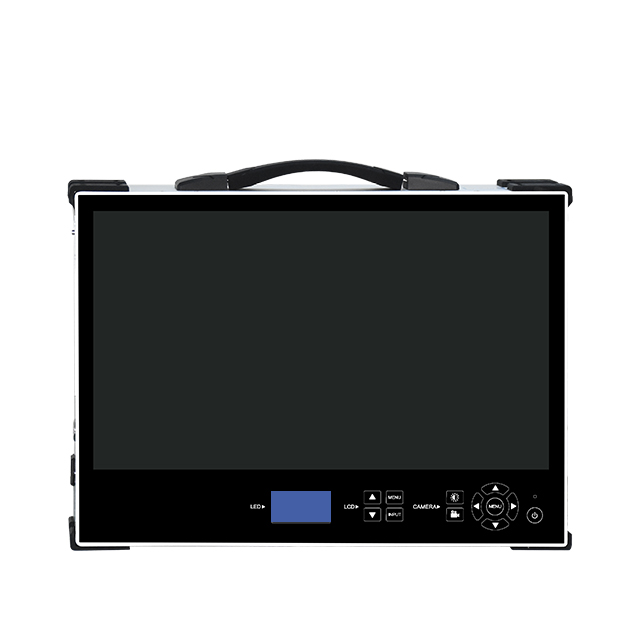

The HD 1080P 27 inch Portable Integrated Endoscope Camera Imaging System is a portable and integrated medical imaging device that combines a 27-inch high-definition monitor, a 1080P endoscope camera, and an image processing system. It is designed to be lightweight and easy to carry, with a foldable or detachable structure, making it suitable for mobile medical scenarios and field operations. The 27-inch large screen provides a wide visual field, allowing doctors to observe the surgical details more clearly.
Product Specifications
| Parmeter | Details |
| Camera | 2600,000 Pixels 1/1.8 "CMOS |
| Image size | 1920(H) *1080(V) |
| Video output | HDMI,DVI,3G-SDI,VGA,USB |
| Shutter speed | 1/60~1/60000(NTSC),1/50~50000(PAL) |
| Camera cable | 2.8m/Special lengths can be customized |
| LED Light source | 120W |
| Long life | ≥50000Hours |
| Power supply | 85 ~ 264VAC |
| Monitor | 27"monitor |
| Language | Chinese, English, Russian, French, Spanish, Portuguese can be switched |
Large 27-inch High-Definition Monitor: The 27-inch monitor with 1080P resolution has high brightness and contrast, providing a clear and comfortable viewing experience, and reducing eye fatigue of doctors during long-term operations.
Portable Design: Adopts foldable or detachable design, with a handle for easy carrying. The weight is controlled within a reasonable range, which is convenient for transportation and use in different places.
Integrated System: Integrates camera, monitor, and image processor, eliminating the need for complex wiring, and can be used quickly after simple installation.
Rich Functions: Supports image capture, video recording, image measurement, and other functions, which is convenient for doctors to save and analyze images.
Long Battery Life: Equipped with a high-capacity rechargeable battery, which can work continuously for 4-6 hours, meeting the needs of mobile operations.
Applications
ENT (Ear, Nose, and Throat) Procedures: Enables clear visualization during examinations and interventions in narrow anatomical passages.
Laparoscopies: Supports minimally abdominal surgeries with high-definition imaging for precise instrument guidance.
Hysteroscopy: Provides detailed uterine cavity imaging for diagnostic and operative gynecological procedures.
Arthroscopy: Facilitates minimally invasive joint surgeries with portability and sharp visual clarity.
Field Medical Rescue: Such as medical rescue in disaster areas, remote areas, and military fields, providing imaging support for endoscopic treatments.
Mobile Medical Units: Used in mobile medical vehicles to carry out endoscopic examinations and small surgeries in rural areas and communities.
Clinic Outreach Services: Suitable for clinics to carry out outreach services, providing convenient endoscopic diagnosis and treatment for patients in remote areas.
Temporary Operating Rooms: Can be quickly set up in temporary operating rooms, such as during public health emergencies, to meet the needs of emergency surgeries.
Q: How much does the system weigh?
A: The total weight is about 15-20 kilograms, which is relatively light and easy to carry by one or two people.
Q: How long does it take to charge the battery?
A: It takes about 3-4 hours to fully charge the battery, and it can be used while charging.
Q: Can the monitor be adjusted in angle?
A: Yes, the monitor can be adjusted in multiple angles, allowing doctors to find the most comfortable viewing angle.
Q: Is the system waterproof?
A: The main body of the system is not completely waterproof, but the camera head and some key parts have certain water resistance, which can be used in humid environments, but should avoid direct contact with water.
