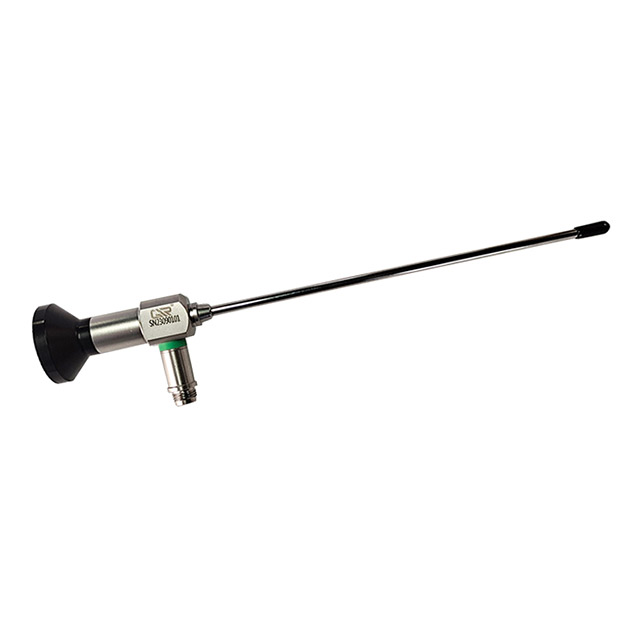

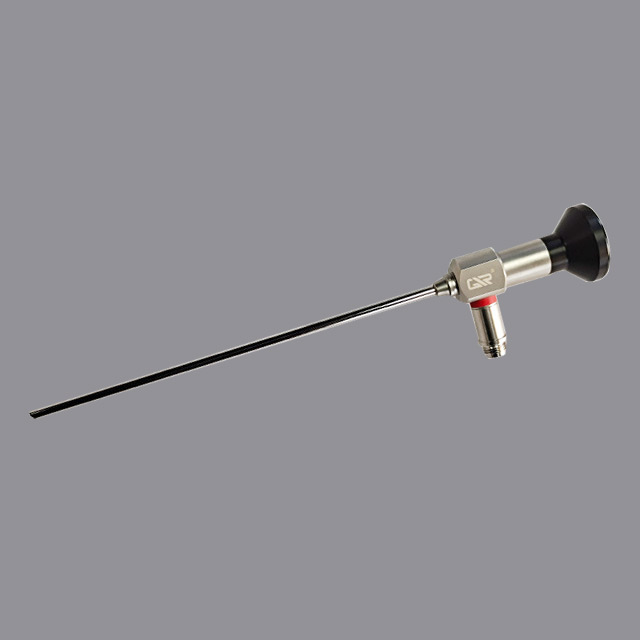

Autoclavable Rigid Endoscope Sinuscope


Availability:

Quantity:



Inquire Add to Basket

Sinuscope Product Introduction

The Sinuscope is an advanced medical endoscopic device designed for precise diagnosis and treatment of sinus and nasal cavity conditions. Featuring high-definition imaging, superior illumination, and a flexible or rigid design, the Sinuscope enables clinicians to perform minimally invasive examinations with exceptional clarity and accuracy.

Brand:
GEIWRE

Product parameters

Structure Composition

Scope of Application

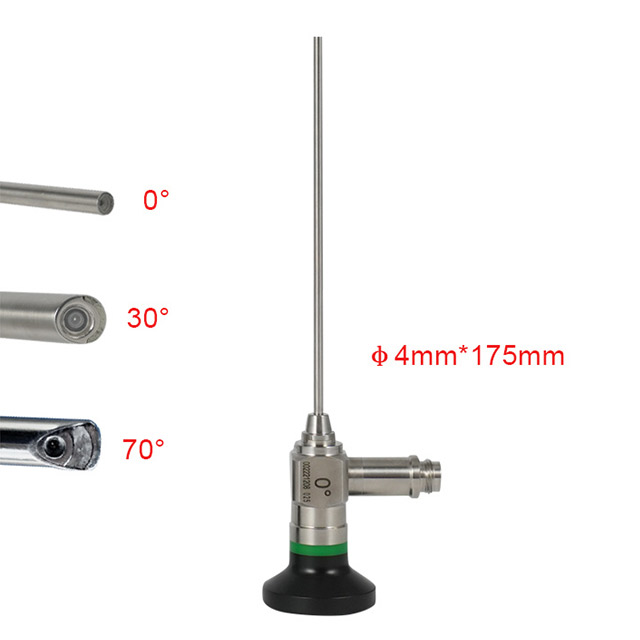

	Diameter	Working length	Angle of view	Ultra-wide field
Sinuscope	4mm	175mm	0°	90°
Sinuscope	4mm	175mm	30°	90°
Sinuscope	4mm	175mm	45°	90°
Sinuscope	4mm	175mm	70°	90°

Sinuscope Key Features:

High-Resolution Imaging: Delivers sharp, real-time visuals for accurate diagnosis.

Optimal Illumination: Bright, adjustable LED light enhances visibility in narrow passages.

Ergonomic Design: Lightweight and easy to maneuver for improved procedural efficiency.

Versatile Compatibility: Supports various diagnostic and therapeutic applications, including sinusitis, polyps, and obstructions.

Durable & Sterilizable: Made from medical-grade materials for repeated use and patient safety.

Ideal for ENT specialists, the Sinuscope enhances patient outcomes through cutting-edge technology and reliable performance.

独立站鼻镜2

1.Optical system

Objective Lens group

It is located at the front end of the endoscope and directly contacts the observed target. Composed of multiple groups of lenses, it is responsible for capturing images and transmitting them to the image transmission system.

Features: It should have high resolution, anti-pollution design (such as anti-fog coating), wide Angle or specific field of view (such as 0°, 30°, 70°, etc.).

Image Transmission System

Rod Lens System: Composed of a series of precise cylindrical lenses, it transmits images through refraction and maintains high clarity (such as the Storz-Hopkins system).

Fiber Optic Bundle: Some endoscopes use flexible fiber optic bundles for image transmission, but hard endoscopes are mainly rod-shaped lenses.

Eyepiece Lens

It is located at the end of the endoscope, allowing doctors to directly observe or connect camera equipment. The diopter can be adjusted to suit the vision of different users.

2. Mechanical structure

Insertion Tube

Material: High-strength stainless steel or titanium alloy, ensuring rigidity and disinfection resistance.

Diameter: Commonly 2mm to 10mm, designed according to the application (such as laparoscopy, sinus endoscopy).

Length: Customized according to surgical requirements (for example, shorter urological endoscopes and longer laparoscopes).

Working Channel (Available in some models)

It is used for inserting surgical instruments (such as biopsy forceps, electrocoagulation probes) and is usually designed as a straight-through type.

Sinuscope: Applications and Scope

A Sinuscope is a specialized endoscopic device designed for the examination and treatment of the nasal cavity and paranasal sinuses. Its high-resolution imaging and minimally invasive design make it a valuable tool in rhinology and otolaryngology (ENT surgery).
