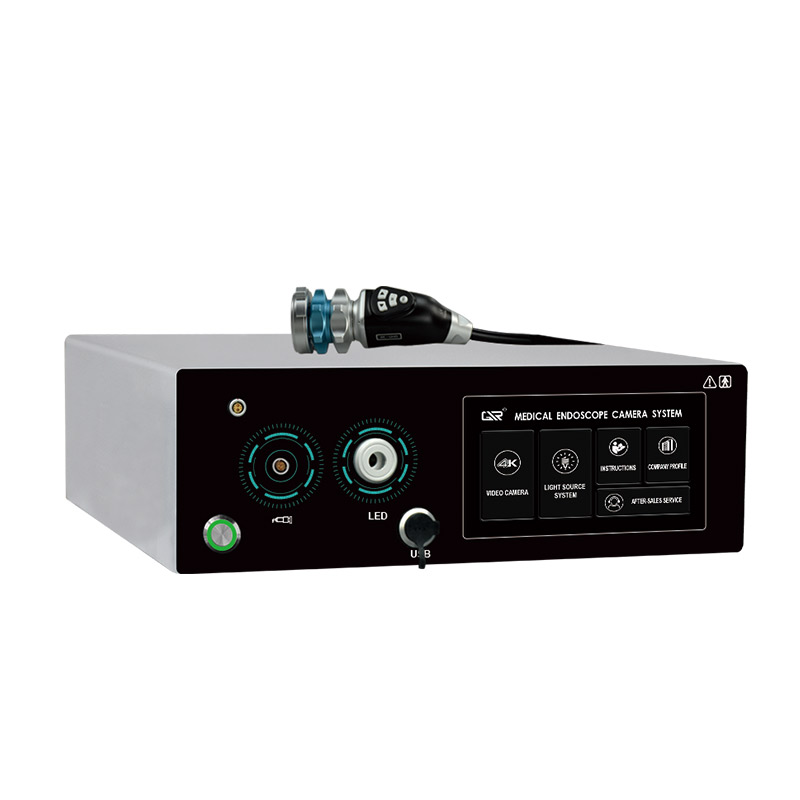

UHD 4K Endoscope Camera System for Thoracic Neurosurgery Urology Gynecology


Availability:

Quantity:



Inquire Add to Basket

The 4K Endoscopic Camera System is a cutting-edge medical device designed to deliver ultra-high-definition surgical visualization, elevating procedural safety and precision. Globally acclaimed by clinicians and widely adopted in top hospitals, it features robust stability, strong scalability, and reliable long-term operation.

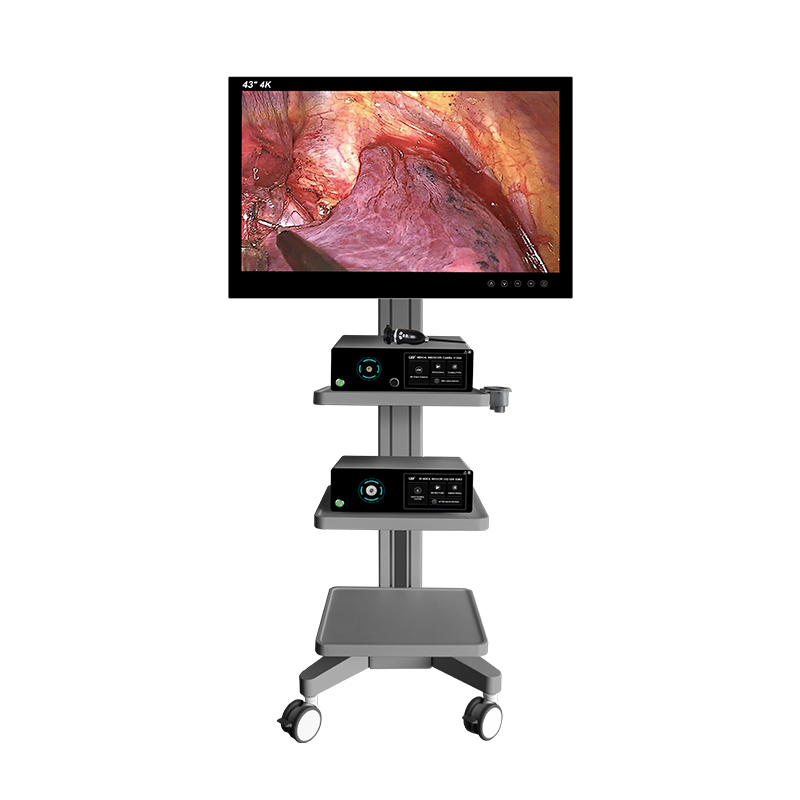

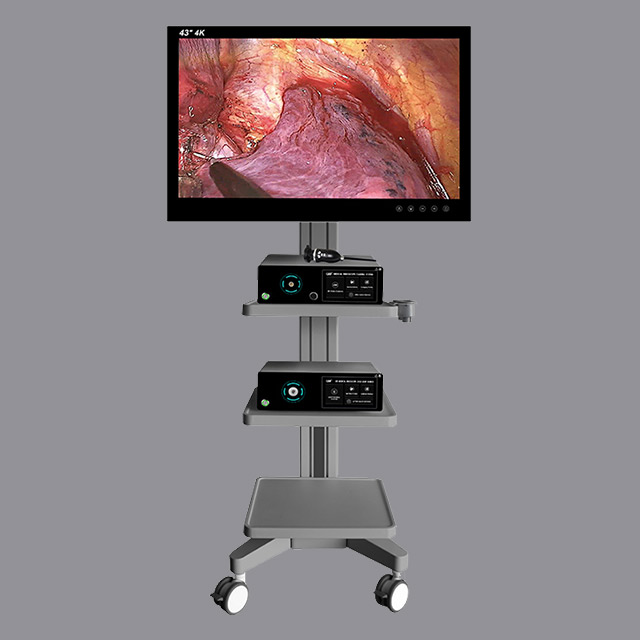

Equipped with a 43-inch anti-glare screen to eliminate reflections in bright clinical environments, the system integrates a 4K video processor that produces crisp 3840x2160P (50/60Hz) imagery with accurate color reproduction and smooth motion—enabling surgeons to detect subtle anatomical details. Its 7-inch touchscreen ensures intuitive operation, supporting both 4K and HD output. Core functionalities include lossless zoom for close-up analysis of key areas, USB-enabled seamless data storage, and one-touch switching between photo and video modes.

Model:
GEV-610
Brand:
GEIWRE

Product Parameters

Product Advantages

Specific Application Department

Product Overview

Elevate diagnostic precision and procedural clarity with our state-of-the-art UHD 4K Endoscope Camera System—engineered to meet the rigorous demands of high-volume medical environments. Boasting an ultra-high resolution of 3840 x 2160 pixels and industry-leading color fidelity, this system unveils minute anatomical details that are critical to accurate diagnosis, targeted intervention, and optimal clinical decision-making.

At its core, a cutting-edge CMOS sensor delivers exceptional low-light performance and minimizes image noise, ensuring crisp, distortion-free visualization even in the most challenging procedural conditions. Designed for seamless compatibility with a full range of rigid and flexible endoscopes, it stands as the cornerstone of modern endoscopy suites across key specialties—including gastroenterology, arthroscopy, ENT, and general surgery.

Experience true-to-life, high-definition imaging that boosts surgical confidence, streamlines workflows, and ultimately drives improved patient outcomes.

Product Specifications

Parameter	Values
Camera	9,000,000 Pixels 1/1.8 "CMOS； 9,000,000 Pixels 3*1/1.8 "CMOS
Resolution	3840 (H) *2160(V)
Definition	2160 Lines
Minimal illumination	0.3Lux
Video output	12G-SDI,HDMI,DVI, USB
Shutter speed	1/60~1/60000(NTSC),1/50~50000(PAL)
Camera cable	2.8m/Special lengths can be customized
Power	85 ~ 264VAC
Language	Chinese, English, Russian, Japanese and Spanish can be switched

Key Features

Ultra High Definition 4K Resolution: Delivers crystal-clear imaging at 3840 x 2160 pixels for exceptional detail and precision.
Superior Color Fidelity: Ensures true-to-life color reproduction, critical for accurate diagnosis and intervention.
Advanced CMOS Sensor Technology: Provides excellent low-light performance and reduced image noise in demanding conditions.
Broad Endoscope Compatibility: Seamlessly integrates with both rigid and flexible endoscopes for versatile use across multiple specialties.
Enhanced Surgical Visualization: Reveals minute anatomical structures to support confident decision-making and improved patient outcomes.
Multi-Specialty Application: Ideal for gastroenterology, arthroscopy, ENT, and general surgery procedures.
Applications
1. General Surgery, Thoracic Surgery and Neurosurgery

In complex surgical fields such as thoracic surgery and neurosurgery, the 4K endoscopic camera host, when connected to a rigid endoscope, delivers high-definition imaging and real-time transmission capabilities. This provides surgeons with superior surgical vision and operational guidance, enabling them to more accurately determine the location, size, and shape of lesions. Ultimately, this enhances the precision and safety of surgical procedures.

2. Urology

Urologists can utilize the 4K endoscopic camera (connected to a rigid endoscope) for transurethral insertion into the body to examine urinary system structures such as the bladder and urethra. The high-definition images clearly display urinary system lesions, including stones and tumors, assisting doctors in formulating more effective treatment plans.

3. Gynecology

In obstetrics and gynecology, the 4K endoscopic camera (connected to a rigid endoscope) is inserted transvaginally to examine gynecological organs such as the uterus and ovaries. Ultra-high-definition imaging allows doctors to observe lesions of gynecological organs—such as tumors and inflammation—more clearly, providing reliable support for the diagnosis and treatment of patients.

4. Otolaryngology (ENT)

In otolaryngology, the 4K endoscopic camera host is used to observe areas such as the nasal cavity and pharynx. Its high resolution and color reproduction capabilities enable doctors to clearly visualize minor lesions, thereby improving diagnostic accuracy.

5. Orthopedics

It is suitable for the treatment of various joint injuries and osteoarticular diseases, including those affecting the shoulder, knee, hip, elbow, and ankle joints. The 4K imaging helps surgeons accurately assess the extent of injury or lesion during minimally invasive orthopedic procedures, optimizing surgical outcomes.

6. Cosmetic Surgery

It can be used for skin detection, providing high-resolution skin images to help doctors diagnose skin problems more accurately. Additionally, it assists doctors in precisely evaluating skin texture and blood vessel distribution during cosmetic procedures, reducing surgical risks.

True UHD 4K Resolution: Unmatched 3840x2160 pixel clarity for exceptional detail.
Advanced CMOS Sensor: High sensitivity, wide dynamic range, and outstanding signal-to-noise ratio.
Natural Color Reproduction: Precise color accuracy (≥95% NTSC) for true tissue differentiation.
Dual HD-SDI & HDMI Outputs: Simultaneous output for recording, monitoring, and documentation.
Integrated Image Enhancement: Real-time edge enhancement, color correction, and noise reduction.
Low Latency & High Frame Rate: Smooth, real-time imaging up to 60fps for dynamic procedures.
Ergonomic Design: Lightweight camera head for reduced surgeon fatigue during long cases.
Wide Compatibility: Universal C-mount adapter fits most standard endoscopes.
DICOM Compatibility: Facilitates easy integration with hospital PACS systems.
Robust Construction: Durable housing designed for rigorous clinical use and repeated sterilization.

1. General, Thoracic & Neurosurgery

In high-stakes surgical fields like thoracic and neurosurgery, the 4K endoscopic camera system pairs seamlessly with rigid optical endoscopes to deliver ultra-high-definition, real-time imaging. Its exceptional resolution and lag-free transmission provide surgeons with unobstructed surgical field visualization, empowering precise identification of lesion location, size, and morphology. This translates to heightened surgical accuracy, reduced procedural risks, and enhanced patient safety—even in the most anatomically complex areas.

2. Urology

For urological interventions, the 4K endoscopic camera connects to rigid optical endoscopes for transurethral access to the bladder, urethra, and upper urinary tract. Its superior image clarity vividly delineates urological pathologies—from tiny calculi and mucosal lesions to malignant tumors—enabling urologists to formulate targeted, evidence-based treatment plans and execute minimally invasive procedures with unmatched precision.

3. Gynecology

In gynecological practice, the 4K endoscopic system integrates with rigid endoscopes for transvaginal/transcervical examinations of the uterus, ovaries, and pelvic cavity. Ultra-high-definition imaging eliminates visualization blind spots, allowing clinicians to clearly identify gynecological abnormalities (e.g., uterine fibroids, ovarian cysts, endometriotic lesions, and early-stage malignancies). This clarity provides reliable, actionable insights that underpin confident diagnosis and optimized therapeutic decision-making for patients.

4. Otolaryngology (ENT)

Designed for ENT specialists, the 4K endoscopic camera system delivers industry-leading resolution and true-to-life color reproduction for examinations of the nasal cavity, pharynx, larynx, and sinus cavities. Its ability to visualize micro-lesions (e.g., early sinus polyps, vocal cord nodules, or mucosal malignancies) that may be missed by standard imaging systems directly boosts diagnostic accuracy and supports timely intervention.

5. Orthopedics

Ideal for treating a full spectrum of joint injuries and musculoskeletal disorders, this 4K system excels in arthroscopic procedures for the shoulder, knee, hip, elbow, and ankle. Its sharp visualization of articular cartilage damage, ligament tears, and synovial pathologies enables orthopedic surgeons to perform targeted repairs with greater precision, minimizing tissue trauma and accelerating patient recovery.

6. Cosmetic Surgery

Beyond traditional surgical applications, this 4K system adds transformative value to cosmetic procedures. For pre-operative skin assessments, it generates high-resolution, detailed skin imagery that aids in accurate diagnosis of conditions like pigmentation disorders, vascular anomalies, and early-stage dermatological concerns. During cosmetic surgeries, its visualization of subdermal tissue texture and microvascular distribution empowers surgeons to execute procedures with enhanced precision, reducing procedural risks and delivering more consistent, aesthetically pleasing results.
