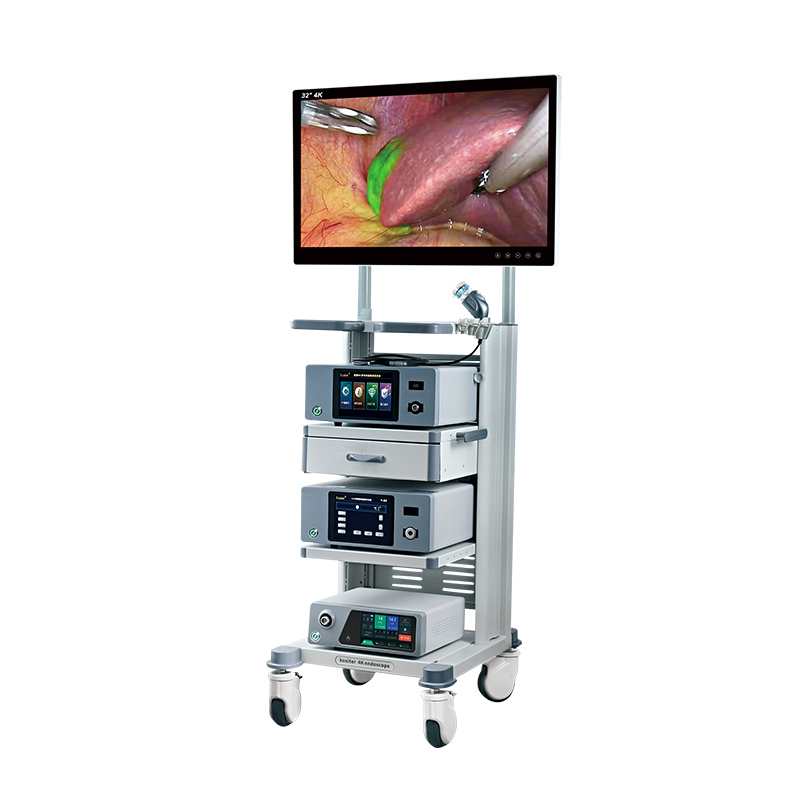

Medical 4K Fluorescence Endoscope Camera System,


Availability:

Quantity:



Inquire Add to Basket

4K imaging principle: Utilizing 4K resolution technology, images are rendered with a high pixel density—typically up to 3840 × 2160 pixels—resulting in exceptional detail and clarity. This enables physicians to observe finer tissue characteristics and pathological changes with greater precision.

Fluorescence imaging principle: This technique leverages the properties of fluorescent agents. A fluorescent contrast medium—such as indocyanine green (ICG)—is administered to the patient intravenously or applied locally. It accumulates preferentially in specific tissues or lesions. When exposed to light of a specific wavelength, the agent becomes excited and emits light at a different wavelength. The endoscopic optical system and sensors detect this fluorescent signal, which is then processed and either fused with 4K white-light images or displayed independently. This provides real-time visual guidance, aiding surgeons in accurate navigation and lesion localization during procedures.

Model:
GEV-660
Brand:
Geiwre

Product Parameters

Product Advantages

Specific Application Department

Product Overview

Unlock a new dimension in surgical oncology and perfusion assessment with the 4K Fluorescence Imaging Endoscopy System. This advanced platform combines stunning UHD 4K white light visualization with near-infrared (NIR) fluorescence imaging. By utilizing Indocyanine Green (ICG) dye, the system reveals critical anatomical features—such as real-time blood flow, lymphatic tissue, biliary structures, and tumor margins—that are otherwise invisible to the naked eye. With seamless switching between 4K white light and NIR fluorescence modes, surgeons gain unparalleled intraoperative insight, supporting more informed decision-making in complex oncologic, hepatobiliary, and reconstructive procedures. Achieve greater precision in tumor resection and vital structure identification.

Product Specifications

Camera	9,000,000 pixels 4*1/2.8"CMOS
Resolution:	3840(H)*2160(V)
Definition	2100 Lines
Minimal illumination	0.5Lux
Video output	HDMl2.0/SDl(4K Ultra HD output) DVI, USB3.0
Camera cable	2.8m/Length customized
Power supply	AC85~264VAC
SNR	50dB
Scanning system	Line by line scanning
Store internal hard disk or USB storage
Language	Chinese, English, Russian, Japaneseand Spanish can be switched

Scope of application

Thoracic surgery,hepatobiliary surgery,gynecology,urology,gastrointestinal surgery

Medical 4k monitor

Adopted the world's leading imaging data arangement to ensure the accurate separation of the three original colours of light

Horizontal resolution up to 2160 lines, fine display of the fine blood vessels,fine nerves, fascialevel in surgery

Medical imported LCD screen, a variety of colour adjustment modes

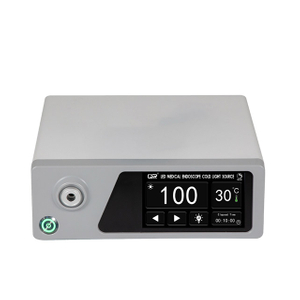

4K Fluorescent fusion light source

Ultra-high brightness LED cold light source

Color temperature: approximately 6000K;

Extra-long service life with a usage time of ≥30,000 hours,

Color Rendering Index (CRl) 290, ensuring that illuminated tissues appear closer to their true colors;

Manually adjustable light intensity with ≥10 dimmable levels;

Cold white color temperature combined with a fluorescent wavelength of 780nm, minimizing fatigue even after long-temm use;

Excellent heat dissipation and silent operation perforance;

Universal light guide interface compatible with the brand's own light guides and those from other brands;

Power consumption ≤100W, offering greater energy efficiency and environmental friendliness

Dual-Mode Imaging: Instant switching between brilliant UHD 4K white light and sensitive NIR fluorescence (ICG).
Tumor & Tissue Targeting: Visualizes ICG uptake in tumors, lymph nodes, and liver segments.
Perfusion Assessment: Real-time evaluation of blood flow in anastomoses (e.g., bowel, gastric conduit) and flaps.
Biliary Imaging: Enhanced visualization of bile duct anatomy during cholecystectomy and biliary surgery.
Sentinel Lymph Node Mapping: Aids in identifying the first draining lymph node(s) in cancer surgery.
High-Sensitivity NIR Camera: Detects low concentrations of ICG for precise mapping.
Advanced Image Processing: Optimizes both white light and fluorescence images for clarity.
Seamless Integration: Compatible with standard laparoscopic/robotic towers and endoscopes (may require specific camera heads).
User-Controlled Parameters: Adjustable fluorescence intensity, overlay settings, and quantification tools (on some models).
DICOM & PACS Compatible: Facilitates documentation and integration into medical records.

Transforming surgeries in multiple specialties: Oncologic Resections (Colorectal, Gastric, Hepatic, Pancreatic - assessing margins & lymph nodes), Hepatobiliary Surgery (Cholecystectomy - biliary anatomy, Liver Resection - segment mapping), Reconstructive Surgery (Anastomotic Perfusion - Colorectal, Gastric Bypass, Free Flap Monitoring), Urology (Partial Nephrectomy, Lymphatic Sparing), Gynecology (Sentinel Node Mapping - Endometrial/Cervical Cancer), Thoracic Surgery (Anastomotic Perfusion, Lymphatic Leak Detection), and Vascular Surgery.
