HD-390
Geiwre
Product Overview

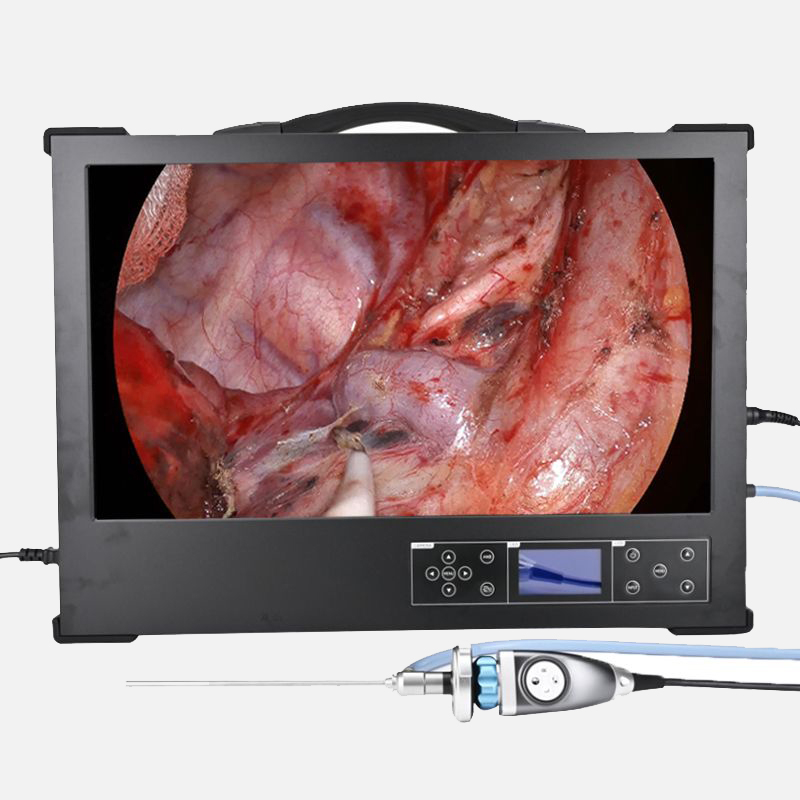

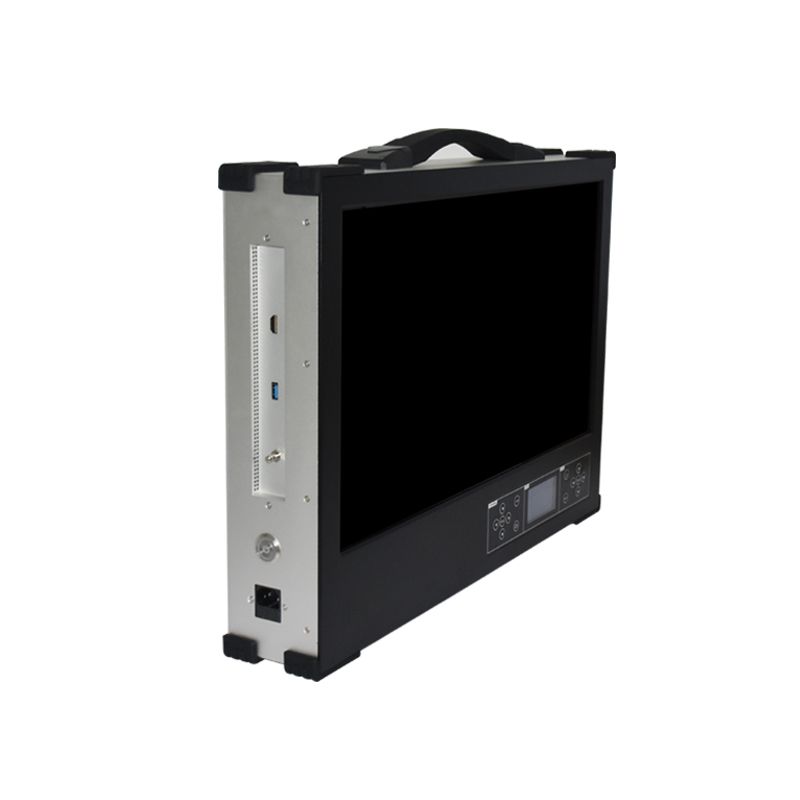

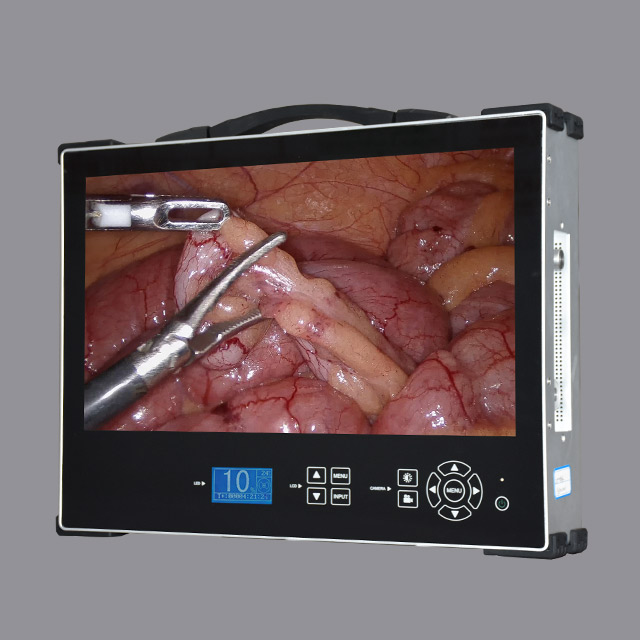

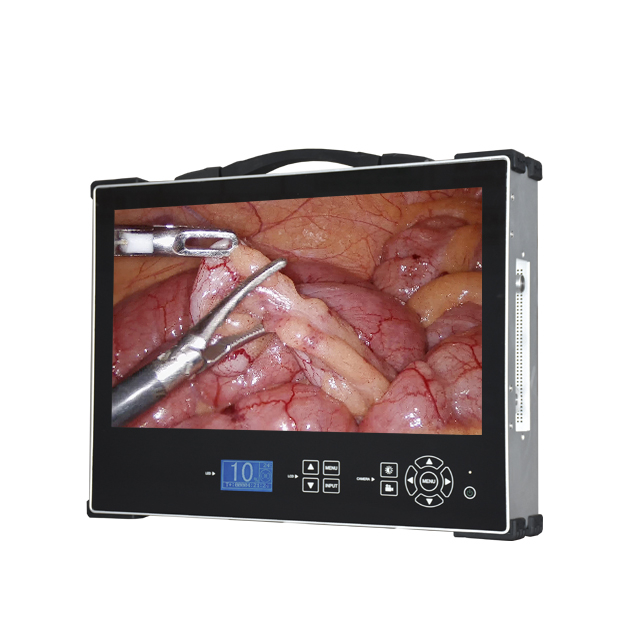

The HD-390 All-in-One 4K Endoscopic Camera System redefines surgical visualization by integrating cutting-edge 4K Ultra-High Definition technology into a remarkably compact and portable unit. This state-of-the-art system combines a high-resolution 4K camera head, a powerful LED light source, and an advanced image processing unit within a single, streamlined console. Eliminating the clutter of multiple boxes and cables, the HD-390 delivers unparalleled image clarity, stunning color accuracy, and exceptional depth of field directly to compatible 4K monitors.
Designed for versatility, it supports a wide range of rigid endoscopes (laparoscopes, arthroscopes, etc.), making it the ideal solution for operating rooms and clinics seeking the pinnacle of endoscopic imaging in a user-friendly, space-saving package.

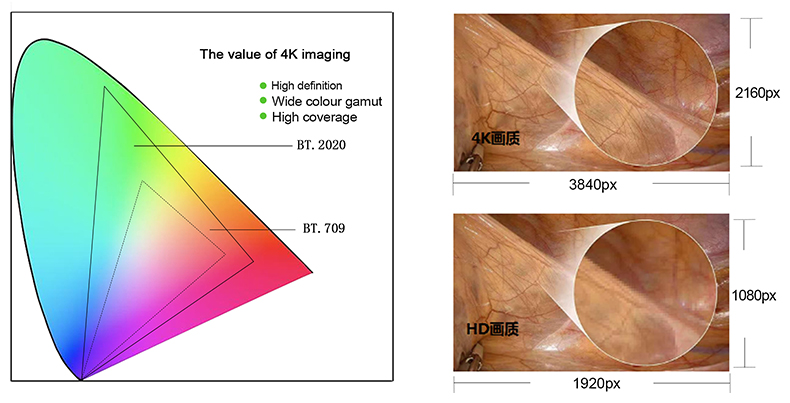

The international Telecommunication Union (lTU) released the "Ultra High DefinitionUHD"standard, a physical resolution of 3840x2160 (4Kx2K) and above is called UltraHiahDefinition, which is twice the width and height and four times the area of ordinaryFuHD(1920x1080)4K resolution is four times that of 1080p,3840x2160=1920x2x1080x2
The BT.2020 colour standard is the largest colour space available in a display deviceClinical applicationsallow better discrimination of tissue boundaries, such as fat,nerve and vascular junctions Can moreclearly observe the small blood vessels and pathological tissue contour.
Product Specifications
| Camera | 9,000,000 Pixels 1*1.8 "CMOS |
| Resolution | 3840(H) *2160(V) |
Definition | 1300 Lines |
| Minimal illumination | 0.3Lux |
Video input | HDMI |

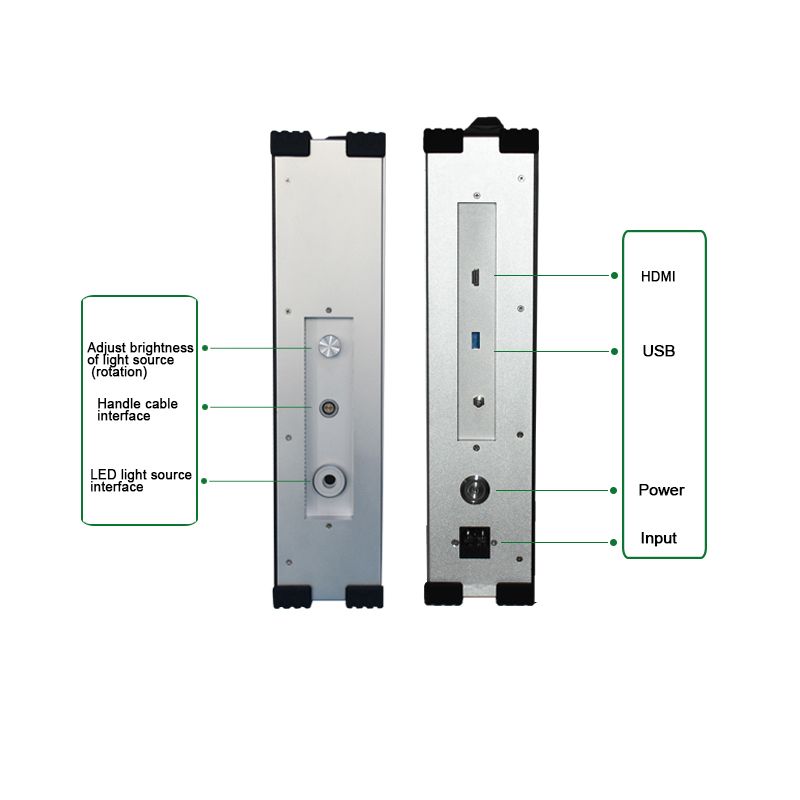

Video output | HDMI,DVI,3G-SDI,VGA,USB |
Shutter speed | 1/60~1/60000(NTSC),1/50~50000(PAL) |
Camera cable | 2.9m/Special lengths can be customized |
LED Light source | 140W |
| Long life | ≥50000Hours |
Power supply | 85 ~ 264VAC |

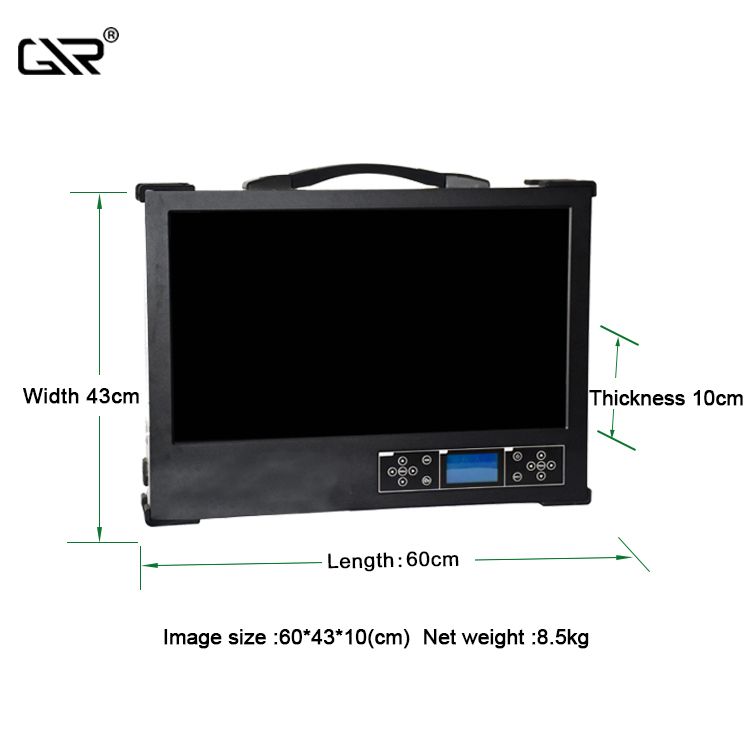

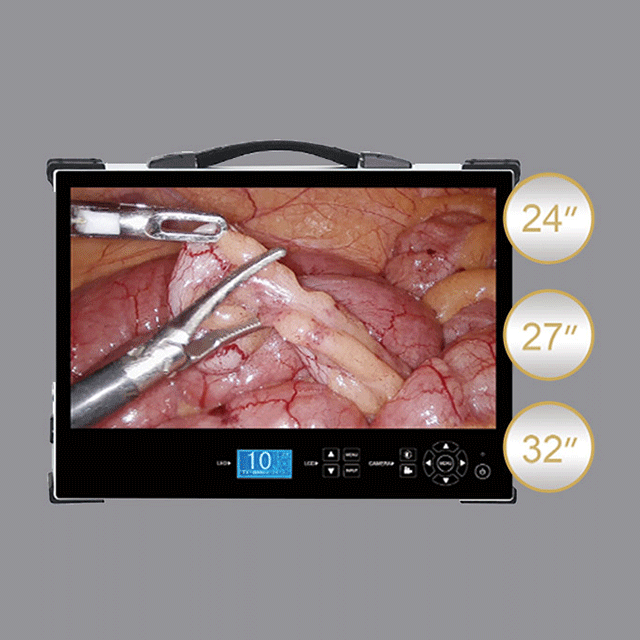

Monitor | 24''monitor |
Language | Chinese, English, Russian, French, Spanish, Portuguese can be switched |
Key Features
Ultra-High Definition 4K Imaging – Delivers exceptional clarity, precision, and depth of field for superior surgical visualization.
All-in-One Compact Design – Integrates a 4K camera head, LED light source, and image processor into a single, portable unit, reducing clutter and enhancing efficiency.
Powerful LED Illumination – Provides bright, consistent lighting for optimal visibility during procedures.
Stunning Color Accuracy – Advanced image processing ensures true-to-life colors for accurate tissue differentiation.
Broad Endoscope Compatibility – Supports a wide range of rigid endoscopes (laparoscopes, arthroscopes, etc.) for versatile clinical applications.
Space-Saving & Portable – Streamlined design ideal for operating rooms and clinics with limited space.
Seamless 4K Monitor Integration – Directly outputs high-quality imaging to compatible 4K displays for real-time viewing.
User-Friendly Operation – Simplified setup and intuitive controls enhance workflow efficiency.
Applications
Respiratory surgery
Thoracoscopy: It is used for the diagnosis and treatment of thoracic diseases, such as the etiology diagnosis of pleural effusion, the staging of lung cancer, and the diagnosis of pleural diseases. In thoracoscopic surgery, the 24-inch integrated endoscopic camera system can provide doctors with a clear surgical field of view to assist in lobectomy, mediastinal tumor resection and other operations.
Urinary system
Cystoscopy: It is an important method to diagnose bladder diseases, such as cystitis, bladder stones, bladder tumors, etc. The doctor observes the situation in the bladder through the cystoscope, and can also perform cystoscopic treatment, such as bladder stone lithotripsy, bladder tumor resection and so on.
Ureteroscopy: It can be used to diagnose and treat ureteral diseases, such as ureteral calculi and ureteral stricture. When lithotripsy is performed under ureteroscope, the camera system can help doctors to operate accurately, improve the success rate of operation and reduce complications.
Gynecology
Hysteroscopy: It is used to diagnose and treat lesions in the uterine cavity, such as endometrial polyps, uterine fibroids, uterine adhesions, and uterine malformations. In hysteroscopic surgery, the doctor can perform precise manipulation based on the image on the display screen to remove the diseased tissue and preserve the normal function of the uterus.
Laparoscopy: widely used in the diagnosis and treatment of gynecological diseases, such as ovarian cysts, uterine fibroids, endometriosis and so on. Laparoscopic surgery has the advantages of less trauma and quick recovery, and the 24-inch integrated endoscopic camera system can provide a clear view of the operation to ensure the safety and accuracy of the operation.
Ear, nose and throat
Nasal endoscopy: can clearly observe the structure and lesions of the nasal cavity and sinuses, such as sinusitis, nasal polyps, nasal tumors, etc., to provide basis for the diagnosis and treatment of diseases. In nasal endoscopic surgery, it helps doctors accurately remove diseased tissue and retain normal nasal structure and function.
Laryngoscope: Used to examine the lesions of the larynx, such as vocal cord polyps, vocal cord nodules, laryngeal cancer, etc. For some laryngeal diseases, minimally invasive surgery can also be performed under laryngoscope, such as vocal cord polypectomy.
Joint surgery
Arthroscopy: It is widely used in the diagnosis and treatment of joint diseases such as knee joint, shoulder joint and hip joint, such as articular cartilage injury, meniscus injury and ligament injury. Arthroscopic surgery through the insertion of arthroscopes and surgical instruments through small incisions, with the aid of the camera system, the doctor can clearly see the internal structure of the joint on the monitor, and carry out accurate repair and reconstruction surgery.
