This OEM Medical Flexible Rhinolaryngoscope is a specialized fiberoptic or digital endoscope designed for minimally invasive examination of the upper airway, including the nasal passages, nasopharynx, oropharynx, hypopharynx, and larynx (vocal cords). Offered as an OEM (Original Equipment Manufacturer) product, it provides a high-quality, cost-effective solution for medical device companies to brand and integrate into their offerings or for clinics seeking reliable diagnostic tools. Engineered for patient comfort and clinician efficiency, it features a slim, maneuverable insertion tube, high-resolution imaging, and intuitive handling, making it indispensable for ENT specialists, pulmonologists, anesthesiologists, and emergency physicians.

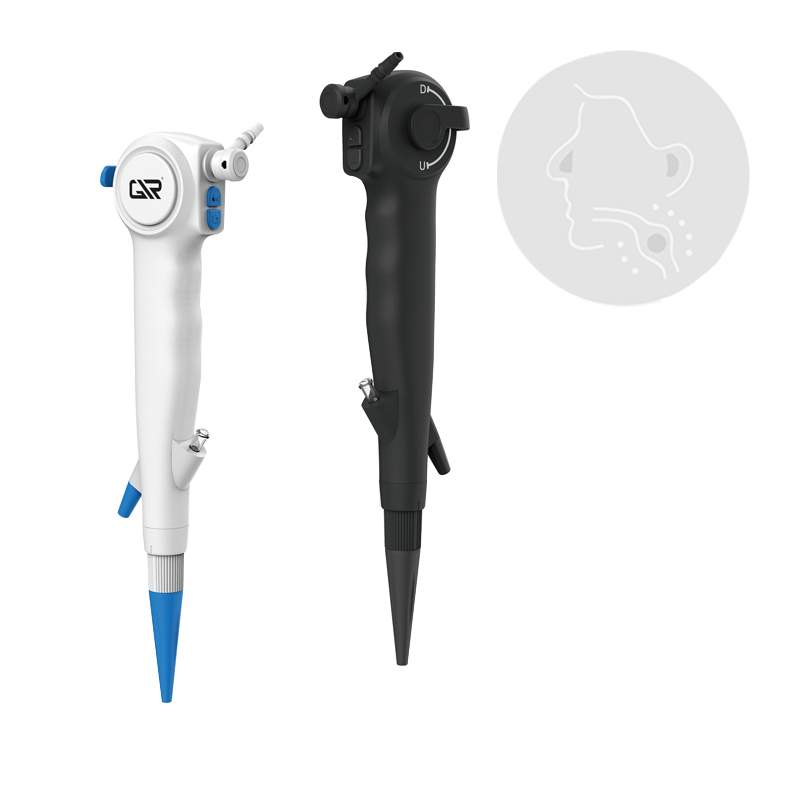

OEM Medical Flexible Rhinolaryngoscope
| Diameter (MM) | Length (customizable) | Inside diameter of working passage | Angle of bend | Pixel | Depth of field | Field angle |
| 2.8 | 380 | 1.2±0.04 | Turn up 210° Turn down 210° | 16W/30W | 5-150MM | 140° |
| 4.3 | 380 | 2.2±0.04 | Turn up 210° Turn down 210° | 16W/30W | 5-150MM | 140° |
| 5.8 | 380 | 2.2±0.04 | Turn up 210° Turn down 210° | 16W/30W/50W | 5-150MM | 140° |
1. Multiple Models for Flexible Selection
Three scope diameters (2.8mm/4.3mm/5.8mm) with a uniform length of 380mm, catering to varied patient demographics and examination requirements.
Precision-engineered internal working channel diameters (1.2±0.04mm/2.2±0.04mm) facilitate instrument intervention, enhancing procedural efficiency.
2. High-Definition Imaging & Wide-Angle Field of View
Configurable pixel options (16W/30W/50W) combined with a 140° ultra-wide field angle ensure comprehensive observation without blind spots.
Depth of field ranging from 5-150mm adapts to lesions at different depths while maintaining image clarity and stability.

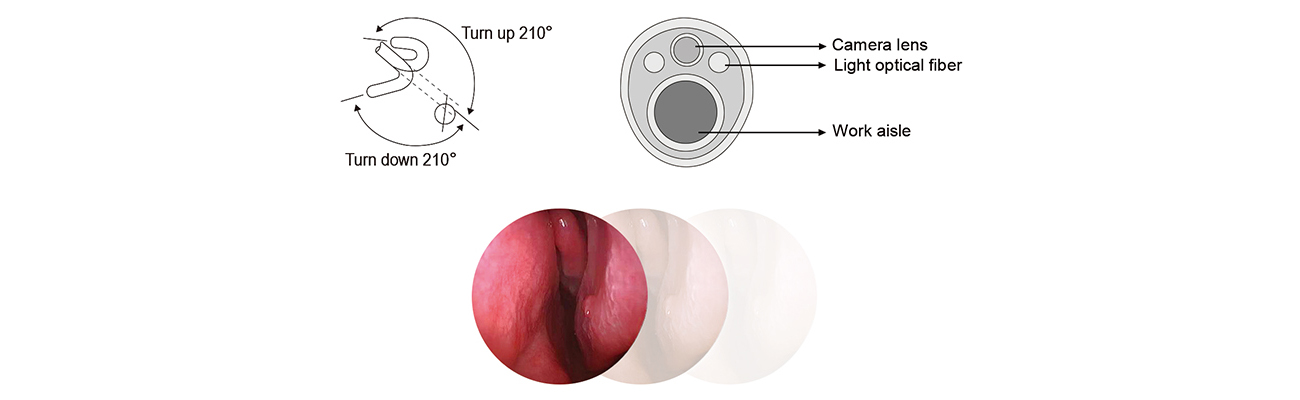

3. Bi-Directional Bending Design for Enhanced Maneuverability
The scope supports bi-directional bending up to 210° (Turn up 210° & Turn down 210°), allowing access to complex anatomical regions and minimizing patient discomfort.
4. Multi-Scenario Compatibility
The aviation connector version pairs with a 13.3-inch portable processor, ideal for mobile diagnostics and operating theaters. The USB version offers plug-and-play compatibility with tablets and computers, enabling remote consultations and rapid diagnosis.
Disposable scopes eliminate cross-infection risks, while reusable models undergo rigorous sterilization protocols, balancing cost-effectiveness and safety.
Applications
Otolaryngology Department: Routine nasal and throat examinations, diagnosis of vocal cord polyps, tumors, and other pathologies.
Emergency Department: Rapid assessment of airway obstructions, traumatic bleeding, and acute conditions.
Physical Examination Centers: Health screenings and occupational disease monitoring (e.g., dust exposure).
Primary Healthcare Institutions: Portable design enhances diagnostic capabilities in resource-limited settings.
