For gastroenterologists, surgeons, and clinical teams, the difference between routine exams and life-saving early diagnoses often comes down to one factor: visual clarity. The GEV-580 (100W) HD Endoscopy System is engineered to deliver that clarity with hospital-grade performance, intuitive usability, and reliable results that you can trust. Whether you’re performing routine screenings or complex therapeutic procedures, this all-in-one system is built to enhance your diagnostic confidence and elevate patient care.

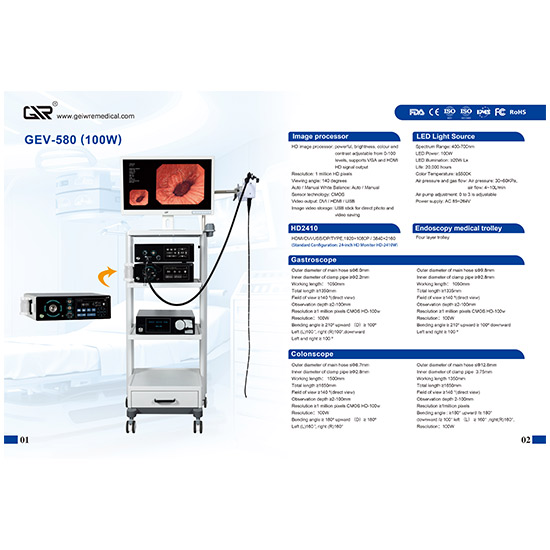

Core System Highlights
Stunning HD Visualization, Every Time
At the heart of the GEV-580 is a powerful HD image processor, designed to bring even the subtlest tissue details into sharp focus.
1 Million HD Pixels Resolution: Capture crisp, true-to-life images that reveal mucosal changes, polyps, and lesions with unmatched precision.
Adjustable Image Tuning: Customize brightness, contrast, and color levels to adapt to different procedures and anatomical environments.
Versatile Connectivity: Supports VGA, HDMI, DVI, and USB outputs for seamless integration with monitors, medical workstations, and digital recorders.
One-Touch Storage: Save photos and videos directly to a USB stick for instant documentation, patient records, and collaborative reviews.
Key Advantage: The system’s 140° viewing angle expands your field of view, reducing blind spots and ensuring you never miss critical details during exams.
100W LED Light Source – Bright, Reliable, and Long-Lasting
No more dim or flickering light disrupting your workflow. The GEV-580’s integrated LED light source delivers consistent, high-quality illumination for thousands of procedures.
100W High-Output LED: Delivers 20W Lx illumination, lighting up even deep, narrow cavities with uniform brightness.
True-to-Life Color Temperature (≥5500K): Mimics natural daylight, ensuring accurate tissue color representation for reliable visual assessments.
Precision Air Management: Adjustable air pressure (30–60KPa) and airflow (4–10L/min) with 0–3 step pump control, optimized for clear visualization and patient comfort.
Comprehensive Endoscope Options for Every Need
The GEV-580 system is compatible with a full suite of high-performance gastroscopes and colonoscopes, tailored to different clinical applications:
表格
Scope Type
Key Specifications
Clinical Benefits
Gastroscope (Ø6.0mm / Ø9.8mm)
1050mm working length, 1350mm total length, 140° direct view, 210° up / 100° down bending
Slim design for easy intubation; wide bending range for retroflex views of the fundus and cardia
Colonoscope (Ø8.7mm / Ø12.8mm)
1500mm working length, 1650mm total length, 140° direct view, 180° up/down bending
Flexible torque control for smooth navigation through the colon; 160° left/right bending for enhanced maneuverability
All scopes feature 1 million pixel CMOS sensors and 2–100mm observation depth, ensuring clear visualization at every stage of the procedure.
️ Endoscopy Medical Trolley – Organized, Mobile, and Efficient
The included four-layer medical trolley keeps your entire setup organized and mobile, designed for busy clinical environments:
Modular Storage: Dedicated shelves for the image processor, light source, monitor, and accessories, with easy access to tools during procedures.
Smooth Mobility: Sturdy wheels with locking mechanisms allow for quiet, stable movement between exam rooms.
Clinical-Grade Build: Durable, easy-to-clean surfaces that meet hospital hygiene standards, built to withstand daily use.
Key Features That Make the GEV-580 Stand Out
FDA, CE, ISO, and RoHS Certified: Manufactured to strict international safety and quality standards, ensuring compliance for use in hospitals, clinics, and surgical centers worldwide. Auto/Manual White Balance: Switch between automatic and manual white balance modes to adapt to different lighting conditions, maintaining consistent image quality. Wide Compatibility: Works with a range of HD monitors (including the standard 24-inch HD-2410W) and accessories, making it easy to integrate into your existing setup. Designed for User Comfort: Intuitive controls, lightweight components, and ergonomic scope designs reduce fatigue during long procedures. Built for Durability: High-quality components and robust construction ensure long-term reliability, even with frequent use.
Ideal Clinical Applications
The GEV-580 (100W) system is ideal for a wide range of endoscopic procedures, including:
Colonoscopies for screening, diagnosis, and therapeutic interventions
Routine and complex endoscopic procedures in hospitals, outpatient clinics, and specialty centers
Early detection and monitoring of gastrointestinal diseases, including polyps, ulcers, and inflammatory conditions
Why Trust GEIW Medical?
At GEIW Medical, we specialize in developing medical imaging solutions that combine cutting-edge technology with practical, clinical-focused design. The GEV-580 is a testament to our commitment to helping healthcare providers deliver the highest standard of care. With a focus on quality, reliability, and user experience, our systems are trusted by medical professionals around the world.
Ready to Elevate Your Endoscopy Workflow?
The GEV-580 (100W) HD Endoscopy System isn’t just a piece of equipment – it’s a tool to enhance your diagnostic capabilities, improve patient outcomes, and streamline your clinical workflow.
Request a full product brochure today to explore the complete specifications, compatible accessories, and clinical use cases. Contact our team to discuss customization options, bulk pricing, or to schedule a virtual demo of the system.
Take the first step toward clearer, more confident endoscopic procedures with the GEV-580.
