GEIWRE Electronic Rhinolaryngoscope, Reusable Flexible Video Nasopharyngoscope for ENT Clinic


Availability:

Quantity:



Inquiry Add to Basket

Developed and produced by Hengjia Electronic with advanced ergonomics and a lightweight structure, this
electronic rhinolaryngoscope minimizes operator fatigue while enhancing maneuverability during examinations.
Its streamlined, bullet-shaped tip facilitates smooth and non-invasive insertion, improving patient comfort and
procedure efficiency.
Featuring an integrated video interface and a cold light source, the device ensures clear visualization without
thermal risk to sensitive tissues.
Ideal for modern ENT diagnostics and treatment, this device combines precision engineering, user-centered
design, and deliver superior clinical effects.

Product Parameters

Functional Characteristics

Scope of Application

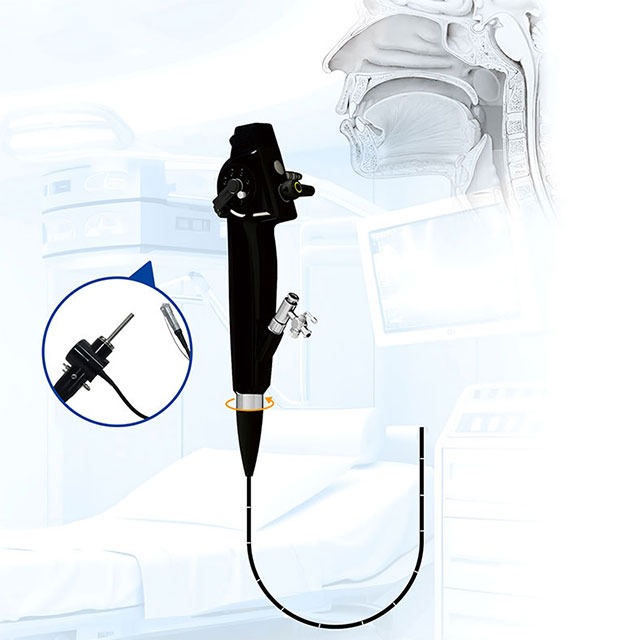

product view

Our Electronic Rhinolaryngoscope is developed and manufactured by Hengjia Electronic, engineered with advanced ergonomics and lightweight construction. This flexible video endoscope effectively reduces operator fatigue during prolonged ENT examinations and delivers superior maneuverability.

Its streamlined, bullet-shaped tip enables smooth, atraumatic insertion, improving patient comfort while streamlining clinical workflow. Equipped with integrated video interface and built-in cold light source, it provides crisp, clear visualization without thermal injury risks to delicate mucosal tissues.

Available in multiple outer diameter options (Φ2.8 / Φ4.0 / Φ5.0 / Φ5.8), the endoscope features wide viewing angle, high 520,000-pixel resolution and large bending angle. It is perfectly suited for routine diagnosis and minimally invasive treatment in modern ENT departments.

Combining precise engineering and user-centric design, this flexible rhinolaryngoscope brings reliable, excellent clinical performance for hospitals and specialist clinics.

Bronchoscope Parameter

Φ2.8

Maximum Outer Diameter of Insertion Tube: ≤Φ3.0mm

Minimum Inner Diameter of Instrument Channel: ≥Φ1.2mm

Working length:302-480mm

Field of view: ≥120 °(direct view)

Observation depth: ≥2-150mm

Resolution: ≥520,000 pixels

Bending angle: ≥ 130° upward (D) > 130

Φ4.0

Maximum Outer Diameter of Insertion Tube:≤Φ4.2mm

Minimum Inner Diameter of Instrument Channel: ≥Φ2.0mm

Working length:302-480mm

Field of view: ≥120 °(direct view)

Observation depth:≥2-150mm

Resolution: ≥520,000 pixels

Bending angle: ≥ 130 °upward (D) ≥130°

Φ5.0

Maximum Outer Diameter of Insertion Tube: <Φ5.2mm

Minimum Inner Diameter of Instrument Channel: ≥Φ2.8mm

Working length:302-480mm

Field of view: ≥120 °(direct view)

Observation depth: ≥2-150mm

Resolution:≥520,000 pixels

Bending angle: ≥ 130° upward (D) ≥ 130°

Φ5.8

Maximum Outer Diameter of Insertion Tube: ≤Φ6.0m

Minimum Inner Diameter of Instrument Channel: ≥Φ3.0mn

Working length:302-480mm

Field of view: ≥120 (direct view)

Observation depth: ≥2-150mm

Resolution: >520,000 pixels

Bending angle: ≥ 130° upward (D) >130°

Ergonomic & Lightweight Handle
Humanized lightweight structure effectively reduces operator fatigue during long-time examinations, delivering excellent controllability and maneuverability.
Atraumatic Streamlined Tip Design
Bullet-shaped smooth front tip supports gentle, non-invasive insertion, greatly improving patient comfort and lowering irritation to nasal and pharyngeal tissues.
High-definition Imaging System
Adopts 520,000-pixel image sensor with ≥120° wide field of view, realizing clear, real-time observation of nasal cavity, pharynx and larynx.
Large Bending Angle
Upward and downward bending angle ≥130°, flexible steering enables comprehensive inspection of complex anatomical structures in ENT regions.
Integrated Cold Light Source & Video Interface
Built-in cold light illumination avoids thermal damage to delicate mucosa; integrated video interface supports stable signal output for display equipment.
Multiple Specifications Available
Four outer diameter options (Φ2.8 / Φ4.0 / Φ5.0 / Φ5.8) to accommodate different patients and various clinical diagnostic and treatment demands.

Scope of Application

This electronic rhinolaryngoscope is intended for endoscopic inspection, diagnosis and minimally invasive interventions of the nasal cavity, nasopharynx, oropharynx and larynx.

It supports lesion observation, biopsy collection, foreign body extraction, topical drug delivery and other endoscopic procedures.

It is widely deployed in general hospitals, specialized ENT clinics and medical examination centers.
