GEV-DL06
Geiwre

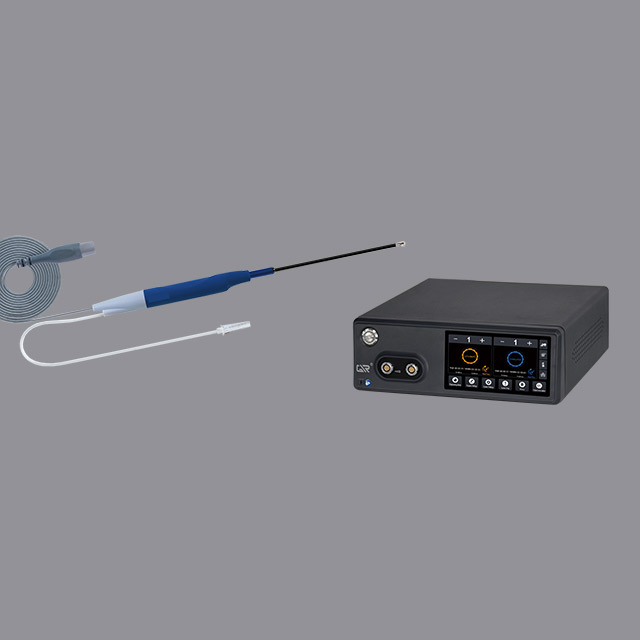

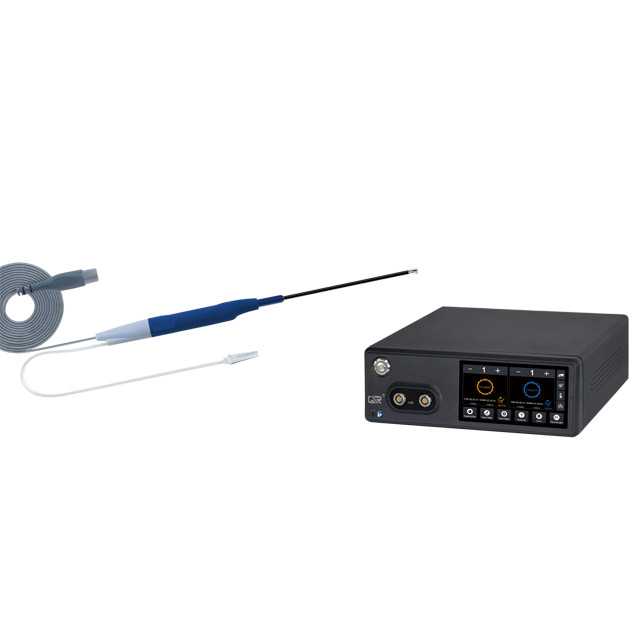

Endoscopy Surgery Dynamic SystemAtmospheric Pressure: 860hPa~1060hPa
Product Characteristics:
Outer handpiece housing supports autoclaving (high-temperature, high-pressure sterilization) High torque; maximum speed up to 12,000 RPM. Speed rapidly adjusts to load changes for enhanced safety.Integrated suction capability, interface provides real-time suction status display.
Supports both continuous rotation (direction software-selectable) and oscillating operation modes
Automatic recognition upon connection of handpiece and foot pedal.
Supports remote software upgrades (Firmware Over-The-Air - FOTA).
Multi-language settings support.
Operation log recording,review,and export functionality
Integrated help information assists users in rapid troubleshooting.

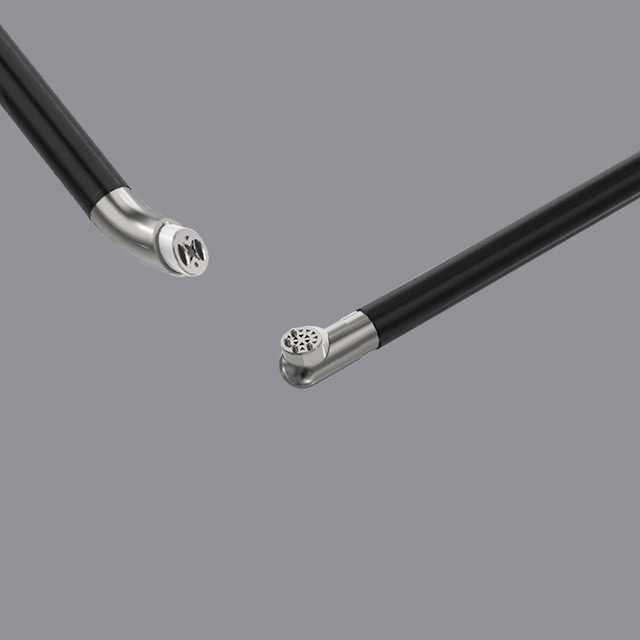

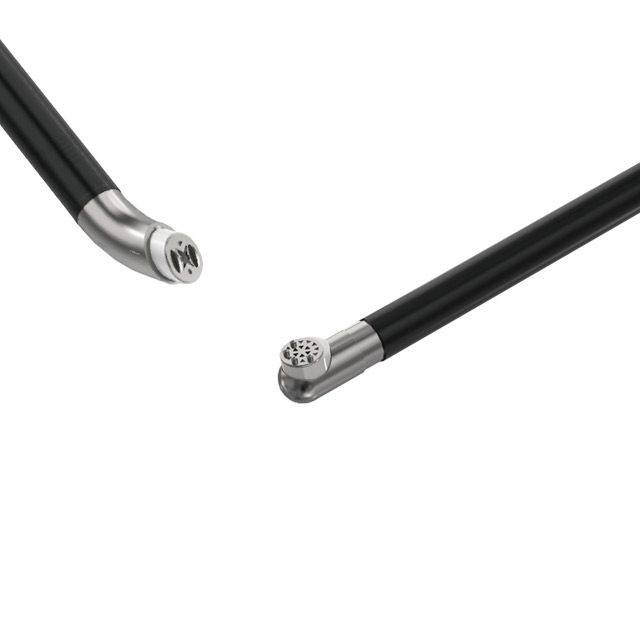

Compatilble with a wide range of blade/shaving handpieces and electrodes to meet diverse clinical requirements
| Clinical use site | Blade tip shape | Work end length | Does it come with a waterway | purpose/Descripion |
| Shoulder joint with electrodes | 90° degree circle | 135mm-150mm (Can be customized ) | Yes | Primarily used for synovectomy and acromioplasty. |
| Knee joint with electrodes | 30-50°degree circle | 135mm-150mm (Can be customized ) | Yes | Primarily used for synovectomy and cartilage treatment. |
| Knee joint with electrodes | 30-50° Single hook type | 135mm-150mm (Can be customized ) | No | Primarily used for meniscectomy and ligament shaping. |
| Knee joint with electrodes | 30-50°Butterfly shape | 135mm-150mm (Can be customized ) | Yes | Primarily used for lateral collateral ligament and patellar retinaculum release. |
| Shoulder joint with electrodes | 90° Circular Multi-Electrode Array | 135mm-150mm (Can be customized ) | No | Primarily used for synovectomy and acromioplasty. |
| Knee joint with electrodes | 90°right angle circularmulti-needle | 135mm-150mm (Can be customized ) | Yes | Primarily used for ligament relaxation and fiber resection repair. |
| Hip joint with electrodes | Annular | 135mm-150mm (Can be customized ) | Yes | Primarily used for hip joint plasma radiofrequency ablation surgery. |
Notes on Translation Choices:
Distinct Operational Modes
Featres two easily distinguishable modes: ABLATE (for ablation and cuting) and COAG (for coagulation and hemostasis).Modes are clearly differentiated using yellow and blue coloring, reflected on both the device interface and the foot pedal.
Adjustable Cutting & Coagulation
Plasma Ablation & Cutting: Adjustable from levels 1 to 9.
plasma & RF Coagulation: Adjustable from levels 1 to 9. This innovative combined "Plasma & RF" coagulation function effectively seals larger blood vessels by forming thrombi.
intelligent Auto-Recognition

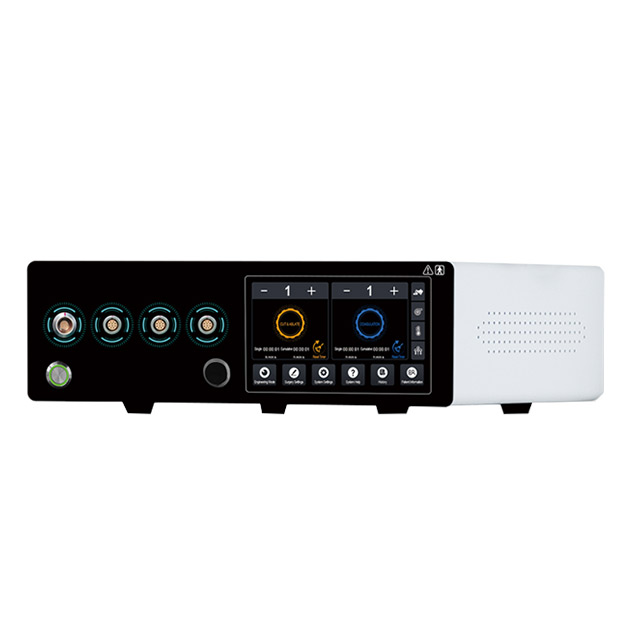

The console automatically recognizes connected components - including handpieces/peripherals, the foot pedal, and power cables - providing corresponding on-screen displays and prompts, lt automatically defaults energy settings based on the specific clinical application and the attached electrode/handpiece.
Automatic Protection Mechanism
An internal patented circuit system continuously monitors energy output and automatically pauses output upon detecting instant current peaks (e.g., if the elecrode tip is too close to or contacts metal). Normal operation resumes automatically once the tip is retured to a safe distance.
High Precision
Features adjustable rotation speed and torque to adapt seamlessly to diverse surgical demands.
Ensures every cut and drill is executed with meticulous accuracy,thus reducing potential errors during complex procedures.
Minimized Trauma
Replaces traditional bone chisels and hammers to significantly reduce damage to soft tissues.
Protects surrounding healthy areas during delicate operations.
High Efficiency
Employs a high-speed rotation design that enhances surgical efficiency.
Contributes to faster procedures and reduced operative times.
Enhanced Safety
Built-in safety features include overload protection,low noise,and minimal vibration.
Creates an optimal operating environment that ensures both surgeon comfort and patient safety.
Orthopedic Surgeries
Fracture Repair:The system is adept at drilling precise holes for the insertion of bone nails, screws,or steel plates to securely fix fractures.
Joint Replacement:During hip or knee replacement procedures,it is used to refine bone surfaces ensuring optimal prosthetic alignment and fit.
Bone Tumor Resection:Its high precision minimizes damage to surrounding healthy tissue when removing diseased bone,thereby enhancing patient outcomes.
Spinal Surgeries
Laminectomy Decompression:Surgeons utilize the system to remove portions of the vertebral lamina during lumbar spinal stenosis operations,effectively relieving nerve compression.
Spinal Fusion:It aids in reshaping vertebral surfaces,facilitating the implantation of bone grafts or fixation devices to achieve solid spinal fusion.
·Other Applications
Bone Marrow Puncture:The Dynamic System's precision supports safe and accurate bone marrow sampling for pathological analysis.
Minimally Invasive Procedures:When teamed with advanced endoscopic techniques— such as Unilateral Biportal Endoscopic(UBE)surgery or percutaneous endoscopy—the system enables precise bone tissue operations while minimizing trauma.
