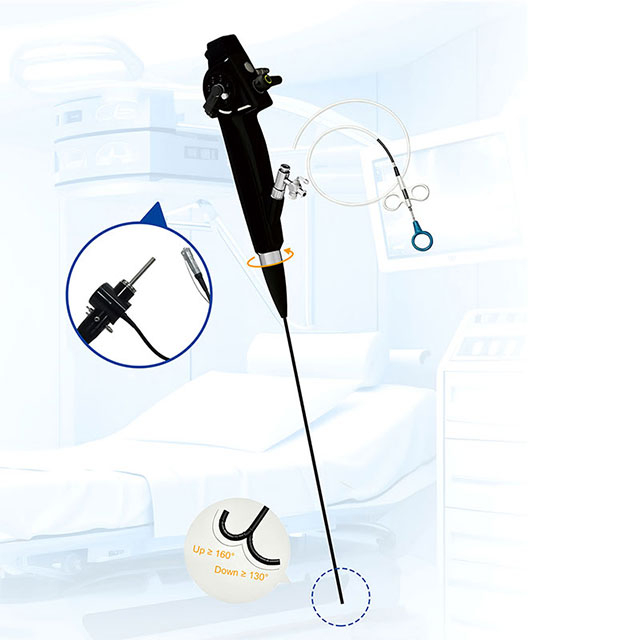

Electronic Flexible Laparoscope | Minimally Invasive Endoscope for General Surgery & Gynecology


Availability:

Quantity:



Inquiry Add to Basket

Serving as a core minimally invasive device for general surgery, gynecology and other clinical departments, the
electronic laparoscope is applicable to various abdominal organ surgeries. It eliminates the need for large
traditional laparotomy incisions and delivers outstanding minimally invasive performance.

Product Parameters

Functional Characteristics

Scope of Application

Product Overview – Electronic Laparoscopy

Electronic laparoscope is a core minimally invasive endoscopic instrument designed for general surgery, gynecology and multiple clinical departments. Equipped with high-definition electronic imaging system, it avoids large incisions required by traditional laparotomy, bringing superior minimally invasive surgical experience.

Key Advantages

✅ Minimal surgical trauma, less intraoperative bleeding

✅ Clear real-time intraoperative high-definition vision

✅ Accelerated postoperative recovery, shorter hospital stay

✅ Flexible tip deflection for wide-range observation inside abdominal cavity

Product Specifications

Two mainstream specifications are available to meet diverse clinical demands:

Φ5.4 Version

Outer diameter of main hose: ≤Φ5.3mm
Working length: 360–480mm
Total length: 600–780mm
Field of view: ≥170° (direct view)
Observation depth: ≥2–150mm
Resolution: 2,000,000 pixels
Bending angle: ≥210° upward; ≥130° downward

Φ9.8 Version

Outer diameter of main hose: ≤Φ9.8mm
Inner diameter of clamp pipe: ≥Φ2.8mm
Working length: 360–480mm
Total length: 600–780mm
Field of view: ≥170° (direct view)
Observation depth:≥ 2–150mm
Resolution: 2,000,000 pixels
Bending angle: ≥210° upward; ≥130° downward

High-definition Electronic Imaging
Built-in 2 million pixel image sensor, delivering sharp, true-color intraoperative images. The 170° ultra-wide direct field of view expands the observation range inside the abdominal cavity, helping surgeons capture lesion details comprehensively.
Excellent Tip Deflection Performance
The distal tip supports ≥210° upward bending and ≥130° downward bending. Flexible steering enables easy access to complex anatomical areas and eliminates blind spots during abdominal cavity examination.
Dual-size Configuration for Diversified Clinical Needs
Two specifications (Φ5.4 and Φ9.8) are optional. The Φ9.8 model integrates an instrument channel with an inner diameter ≥2.8 mm, allowing passage of surgical forceps for synchronous biopsy and minimally invasive treatment. The slim Φ5.4 version brings less trauma for delicate procedures.
Optimized Observation Range
Supports an observation depth of 2–150 mm, adapting to different tissue distances during surgery and maintaining stable clear focus for both near-field lesions and distant tissue observation.
Minimally Invasive Design
Replaces traditional open laparotomy. Small entry incision reduces surgical trauma, intraoperative bleeding and postoperative pain, effectively shortening patient recovery time and hospital stay.
Wide Clinical Compatibility
Perfectly matched with mainstream endoscopic camera systems. Applicable to routine examination and minimally invasive operations in general surgery, gynecology and other related departments.

Application Scope

Suitable for various abdominal organ minimally invasive surgeries across general surgery, gynecology and other departments. It can be matched with corresponding surgical instruments to complete inspection, diagnosis and treatment procedures.
