Product Overview
4K 2-in-1 Endoscope System is an all-in-one endoscopic platform compatible with both rigid endoscopes and flexible endoscopes, specially designed for gastroenterology diagnosis and minimally invasive surgery.

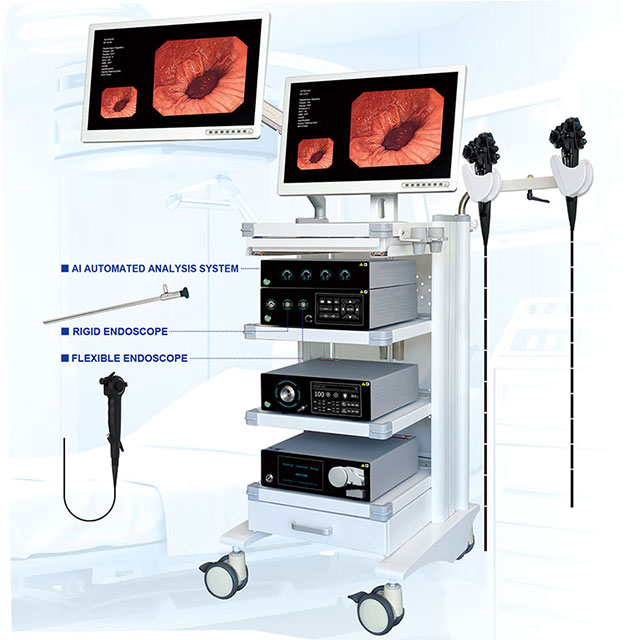

The system is composed of an advanced image processor, multi-spectrum LED light source, four-layer medical trolley, and optional flexible gastroscope and colonoscope. It supports 2,000,000 pixels standard resolution, with optional 8,000,000 pixels 4K configuration. Multiple light modes including white, green, blue, purple and violet light are available to realize enhanced mucosal observation.
Equipped with the built-in AI Automated Analysis System based on deep learning algorithms, the device can automatically identify, mark and calculate the size of polyps, ulcers and other gastrointestinal lesions in real time. Combined with 4K NBI technology, it effectively improves the detection rate of early gastrointestinal cancer, reduces missed diagnosis and shortens operation time.
The distal end of flexible gastroscope and colonoscope features multi-angle flexible bending, largely eliminating observation blind spots in the digestive tract. Rich interfaces including HDMI, DVI, SDI and USB 3.0 support instant photo capture, video storage and local AI model training.
Electronic Gastroscope Parameters
Outer diameter of head end ≤ф9.8mm
Inner diameter of clamp pipe > Ф2.8mm
Working length ≥ 1050mm
Total length >1350mm
Field of view ≥ 140 °(direct view)
Observation depth ≥ 2-200mm
Resolution ≥2,000,000 pixels
Bending angle: ≥ 210°upward/ ≥ 100° downward / ≥ 100° left/ ≥ 100° right maximum
Electronic colonoscope Parameters
Outer diameter of main hose:≤Φ12.9mm
Inner diameter of clamp pipe:≥ Φ4.2mm
Working length: 1350mm
Total length: ≥1650mm
Field of view: ≥170 °(direct view)
Observation depth: 2-150mm
Resolution: ≥2,000,000 pixels
Bending angle: Up And Down≥180°
Left And Right ≥160°
Image processor
image processor: powerful, brightness, colour and contrast adjustable from 0-100 levels
Resolution:8,000,000 pixels (Options) 2,000,000 pixels (Options)
Auto /Manual White balance: Auto /Manual
Video output: HDMI IN/ HDMI OUT/ USB3.0
Image video storage: USB stick for direct photo and video saving
LED Light source
1. White light
2. Green light
3. Blue light Optional
4. Purplelight/Violet light Combinations
5.Red light spectrum range: 400-700nm
LED power: 140W
LED illumination: ≥200,000Lx
Life: 50,000 hours
Color temperature: ≥5500K
Air pressure and gas flow: Air pressure: 30~60KPa,air flow:4~10L/min
Air pump adjustment: 0 to 3 is adjustable
Power supply: AC 85~264V
Al Automated Analysis System
Built-in deep learning algorithms automatically identify and mark tiny polyps, ulcers, and other lesions, calculating
lesion size in real time, reducing the missed diagnosis rate and shortening surgery time.
Combined with 4K NBl technology, the detection rate of early gastrointestinal cancer is increased from less than
20% to over 27.6%, with a sensitivity of up to 98.2%.Al can mark tiny polyps, erosions, and abnormal blood
vessel morphologies that are easily missed under traditional white light in real time, making "optical biopsy" a true
reality.
Al Intelligent Analysis Module:
Core Hardware: Built-in dedicated NPU neural network processor and GPU image accelerator processor
Analysis Functions: Real-time automatic identification of lesions/abnormal blood vessels, automatic calculation
of lesion size, and highlighting
Interactive Functions: Supports intelligent voice control, with a recognition rate of >95% in noisy environments
Data Interface: Supports USB 3.0/Type-C high-speed interface, enabling plug-and-play 4K video recording and
local Al model training.
