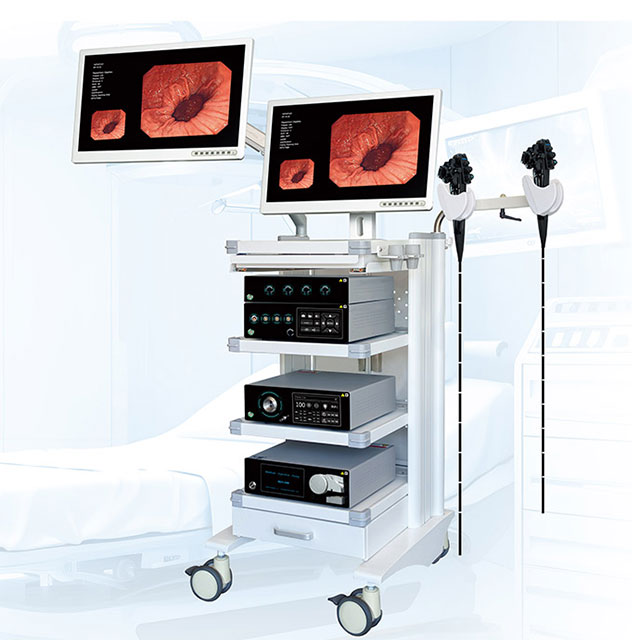

GEV-580
Geiwre
Electronic Gastroscope Parameters
Outer diameter of head end ≤ф9.8mm
Inner diameter of clamp pipe > Ф2.8mm
Working length ≥ 1050mm
Total length >1350mm
Field of view ≥ 140 °(direct view)
Observation depth ≥ 2-200mm
Resolution ≥ 1 million pixels CMOS HD-1080P
Bending angle: ≥ 210°upward/ ≥ 100° downward / ≥ 100° left/ ≥ 100° right maximum
Electronic colonoscope Parameters
Outer diameter of main hose:≤Φ12.9mm
Inner diameter of clamp pipe:≥ Φ4.2mm
Working length: 1350mm
Total length: ≥1650mm
Field of view: ≥170 °(direct view)
Observation depth: 2-150mm
Resolution: ≥1,000,000 pixels
Bending angle: Up And Down≥180°
Left And Right ≥160°
Image processor
image processor: powerful, brightness, colour and contrast adjustable from 0-100 levels
Resolution: 1,000,000 pixels
Auto /Manual White balance: Auto /Manual
Video output: HDMI IN/ HDMI OUT/ USB
Image video storage: USB stick for direct photo and video saving
video saving
LED Light source
1. White light
2. Green light
3. Blue light
Optional
4. Purplelight/Violet light
Combinations
5.Red light spectrum range: 400-700nm
LED power: ≥140W
LED illumination: >200,000Lx
Life: 50,000 hours
Color temperature: ≥5500K
Air pressure and gas flow: Air pressure: 30~60KPa,air flow:4~10L/min
Air pump adjustment: 0 to 3 is adjustable
Power supply: AC 85~264V
Al Automated Analysis System
Built-in deep learning algorithms automatically identify and mark tiny polyps, ulcers, and other lesions, calculating
lesion size in real time, reducing the missed diagnosis rate and shortening surgery time.
Combined with 4K NBl technology, the detection rate of early gastrointestinal cancer is increased from less than
20% to over 27.6%, with a sensitivity of up to 98.2%.Al can mark tiny polyps, erosions, and abnormal blood
vessel morphologies that are easily missed under traditional white light in real time, making "optical biopsy" a true
reality.
Al Intelligent Analysis Module:
Core Hardware: Built-in dedicated NPU neural network processor and GPU image accelerator processor
Analysis Functions: Real-time automatic identification of lesions/abnormal blood vessels, automatic calculation
of lesion size, and highlighting
Interactive Functions: Supports intelligent voice control, with a recognition rate of >95% in noisy environments
Data Interface: Supports USB 3.0/Type-C high-speed interface, enabling plug-and-play 4K video recording and
local Al model training.
Imaging technology
Technical basis: Modern gastroenteroscopy generally adopts CMOS or CCD image sensor, combined with HDTV full HD output mode, to ensure clear and delicate images.
Image quality performance: with high sensitivity, high sharpness of the image quality, can truly reflect the situation of the inspected part.
Flexible bending properties
Bending Angle: The bending Angle of the gastroscope is usually ≥210° up, ≥90° down, ≥100° left, ≥100° right, while the bending Angle of the enteroscope may be larger, such as ≥180° above, ≥180° down, ≥160° left, ≥160° right.
Bidirectional bending mode: Some gastroenteroscopes have a flexible bidirectional bending mode that makes it easier to examine the lining of the gastrointestinal tract.
Accurate viewing distance and field of view
Observation distance: The observation distance of the gastroenteroscope is usually between 2mm and 100mm, and it has a close-focus observation function, which can automatically focus and achieve about 60 times magnification observation.
Visual field: The visual field Angle is generally ≥140°, ensuring that the doctor can clearly observe the whole picture of the examined site.
Comfortable operating experience
Endoscopic design: The endoscopic design of gastroenteroscopes is usually slim to reduce patient discomfort and increase the likelihood of insertion into the narrow site.
Operation performance: New operating parts based on ergonomic design, such as G7 handle, feel more fit, can meet the needs of smooth one-hand operation.
Advanced additional features
Front water injection function: During examination or treatment, it can clean mucus and bleeding, maintain clear vision, and improve safety.
Special light patterns, such as electron staining pattern (NBI), can emphasize the fine structure of the lesion edge and interior, and improve the diagnosis rate of early cancer.
Wireless connection technology: Some gastroenteroscopes have wireless insertion and wireless connection technology, which is convenient for doctors to remote operation or data transmission.
Compatibility and maintenance
Compatibility: The gastroenteroscopy is usually compatible with the department's existing HD colonoscopy host and can achieve a variety of examination and treatment functions.
Easy maintenance: with a fully waterproof design, no need to wear a waterproof cap when cleaning and disinfecting, simplifying the operation process.
Inflammatory diseases: It can accurately judge the type, degree and scope of inflammation such as gastritis, gastric ulcer, esophagitis, enteritis, etc. For example, through the gastroscope can observe whether the gastric mucosa congestion, edema, erosion, judge the severity of gastritis; Enteroscopy can check the intestinal mucosa for ulceration and bleeding, and assist in the diagnosis of ulcerative colitis and Crohn's disease.
Neoplastic diseases: It is an important means to find and diagnose gastrointestinal tumors. It can directly observe whether there is a tumor in the gastrointestinal tract, judge the size, shape, and location of the tumor, and can also conduct pathological examination of the tissue to determine whether the tumor is benign or malignant, such as early gastric cancer and colorectal cancer can be found and diagnosed under gastroenteroscopy.
Bleeding diseases: When there is unexplained hematemesis, black stool or blood in the stool, gastroenteroscopy can quickly determine the bleeding site, such as gastric ulcer bleeding, esophageal variceal bleeding, intestinal vascular malformation bleeding, etc., to provide basis for follow-up treatment.
Other diseases: It can also be used to diagnose gastrointestinal polyps, diverticula, foreign bodies, congenital malformations and other diseases. For example, colonoscopy can find polyps in the intestine, judge their size and shape, and assess the risk of cancer. The gastroscope can find foreign bodies in the esophagus or stomach, such as fish bones and bones mistakenly swallowed.
Disease treatment
Polyp resection: For polyps in the gastrointestinal tract, endoscopic resection can be performed through gastroenteroscopy. Common methods include high-frequency electrocoagulation resection, argon ion coagulation, endoscopic submucosal dissection, etc., which has little trauma and fast recovery, and can effectively prevent malignant polyp transformation.
Hemostatic treatment: For gastrointestinal bleeding, a variety of hemostatic measures can be taken under gastroenteroscopy, such as injecting hemostatic drugs, spraying hemostatic agents, using hemostatic clips to clamp bleeding vessels, heat probe to stop bleeding, etc., to stop bleeding quickly and avoid serious consequences such as shock caused by bleeding.
Early tumor treatment: For early gastrointestinal tumors, endoscopic mucosal resection or endoscopic submucosal dissection can be performed to completely remove the diseased tissue to achieve radical treatment, while preserving the normal function of the gastrointestinal tract and improving the quality of life of patients.
