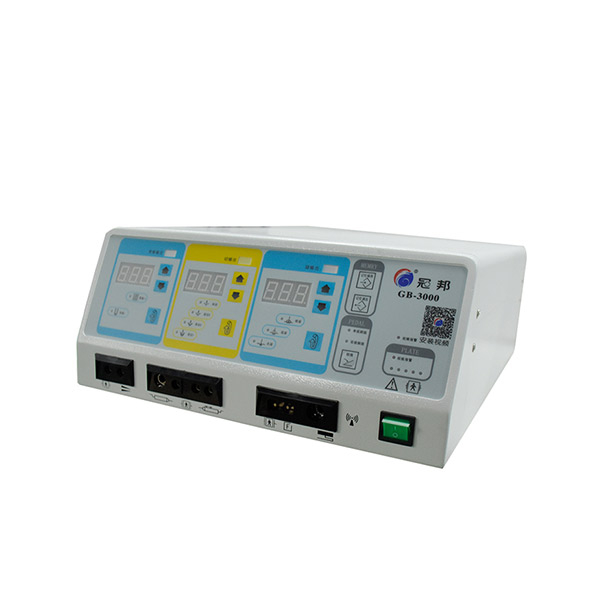

Veterinary Equipment High Frequency Electrosurgical Unit Veterinary Clinic Surgical

Electrosurgical Unit Advantages of Ultrasonic Scalpel

• Remote Fault Diagnosis Function – Enables quick and efficient troubleshooting from a distance, minimizing downtime.

• Full-Function Power Automatic Compensation – Ensures consistent output performance regardless of changes in tissue resistance.

• Automatic Monitoring & Mistake Indication – Continuously monitors system status and provides clear alerts in case of errors for enhanced operational safety.

• High-Definition Large LED Display with Audio & Visual Indication – Offers clear visibility and real-time feedback during procedures.

• Standard Endoscopic Interface – Compatible with all major brands of endoscopes, ensuring seamless integration.

• Power-Off Protection Circuit with Memory Function – Automatically retains the last output settings, improving convenience and consistency.

• Underwater Cut Function – Ideal for use in fluid environments such as with argon systems, endoscopes, uteroscopes, and for cutting in fat-rich tissue areas.

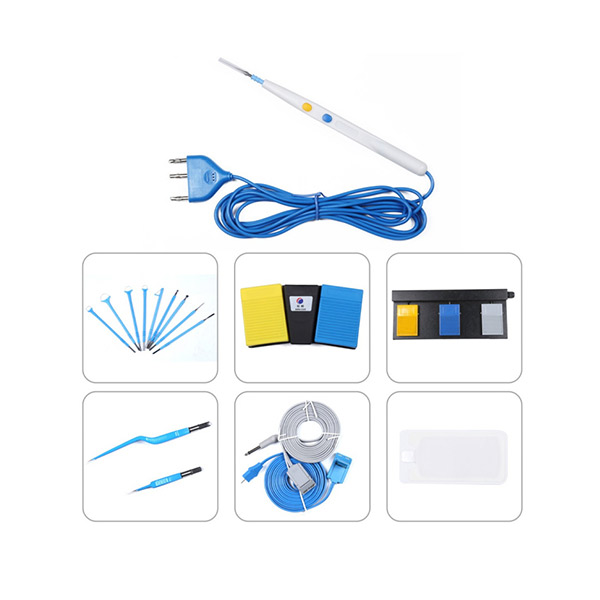

• Six Working Modes – Includes monopolar output controlled by hand switch or foot switch, and bipolar output controlled by foot switch, providing versatility for various surgical needs.

• Independent Output Interface – Ensures that only the activated interface delivers output, while all others remain inactive, significantly enhancing safety.

• High-Performance Neutral Electrode Contact Inspection System – Continuously assesses the effective contact area between the electrode and the skin. If contact becomes dangerously low, the system automatically cuts off the output and triggers an alarm.

• Optional Hand Switch Controlled Power Output – Allows surgeons to increase or decrease output power directly via the hand switch, offering greater control and convenience during procedures.




Q1: What are the different working modes available on this device?
A: The unit offers six distinct working modes. It supports Monopolar output, which can be controlled by either a hand switch or a foot switch, and Bipolar output, which is controlled via a foot switch. This flexibility allows surgeons to choose the best method for their specific procedure.

Q2: How does the safety feature for the neutral electrode (return pad) work?
A: The system features a high-performance Neutral Electrode Contact Inspection System. It continuously tests and evaluates the effective contact area between the electrode and the patient's skin (derma). If the contact area becomes too low and reaches a dangerous level, the system will automatically cut off the power output and trigger an audible and visual alarm to ensure patient safety.

Q3: Can I use this device with endoscopes from other manufacturers?
A: Yes. The device is designed with a standard endoscopic interface, making it compatible with endoscopes of any brand.

Q4: What happens if there is a power failure during a procedure?
A: The unit is equipped with a power-off protection circuit. In the event of a power interruption, the device remembers the last output settings used. When power is restored, it will retain those settings, reducing setup time and maintaining consistency.

Q5: How does the independent output interface improve safety?
A: The generator features an independent output interface for each connection. This design ensures that only the specific output interface that has been activated will deliver energy. All other closed (inactive) interfaces remain completely inert with no output, significantly reducing the risk of unintended burns or stray energy.

Q6: What types of surgical procedures is this device suitable for?
A: This is a versatile unit suitable for a wide range of applications. It includes an underwater cut function, making it ideal for use in fluid environments such as with resectoscopes and uteroscopes. It is also compatible with argon beam systems and features specialized modes for organic cutting in fat-rich areas.

Q7: How does the device communicate its status to the surgical team?
A: The generator features a high-definition large LED display for clear visibility. In addition to the visual indicators on the screen, it provides audio and visual indications for alarms and function status, ensuring the team is always aware of the unit's operating condition.

Q8: Does the hand switch allow me to control the power level?
A: Yes. As an optional feature, the hand switch can be configured to control power output, allowing the surgeon to increase or decrease the intensity directly from the sterile field without needing to ask a technician to adjust the machine.

Q9: What happens if the device detects a mistake or malfunction?
A: The system includes an automatic monitoring function and mistake indication. It constantly monitors its own status and will provide a clear error indication if a problem is detected, allowing for quick troubleshooting.

Q10: Does the system have a feature to compensate for different tissue types?
A: Yes. The device includes a full-function power automatic compensation feature. This ensures that the power output remains consistent and effective even when the generator encounters varying tissue impedance, providing reliable cutting and coagulation.
