HD-380
Geiwre
Camera: 3,000,000 Pixels 3*1/2.8 "CMOS
Resolution: 1920(H) *1300(V)
Definition: 1300 Lines
Minimal illumination: 0.3Lux
Video input: HDMI

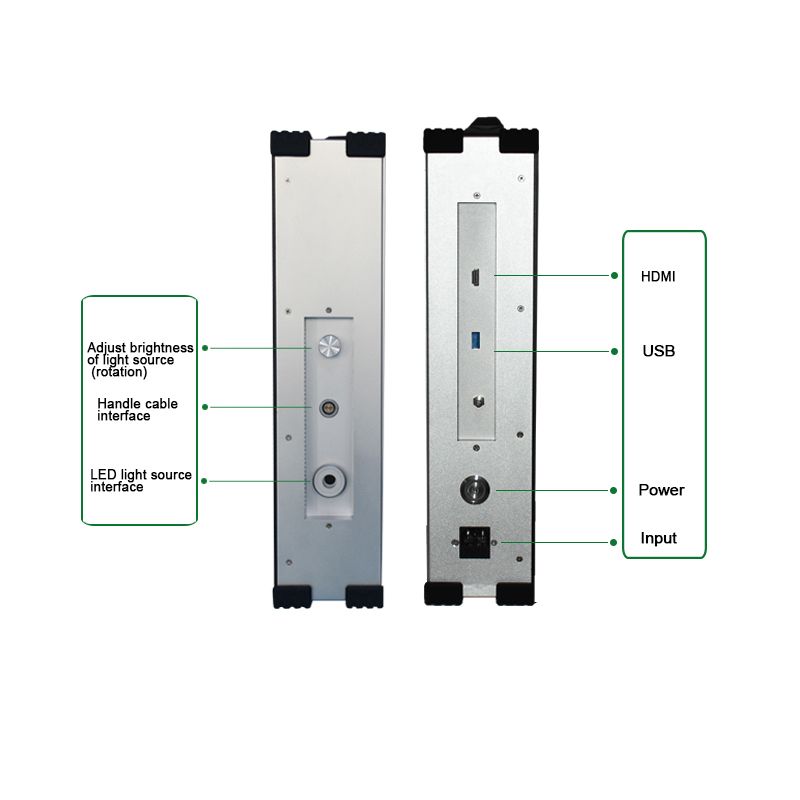

Video output: HDMI,DVI,3G-SDI,VGA,USB
Shutter speed: 1/60~1/60000(NTSC),1/50~50000(PAL)
Camera cable: 2.8m/Special lengths can be customized
LED Light source: 120W
Long life: ≥50000Hours
Power supply: 85 ~ 264VAC

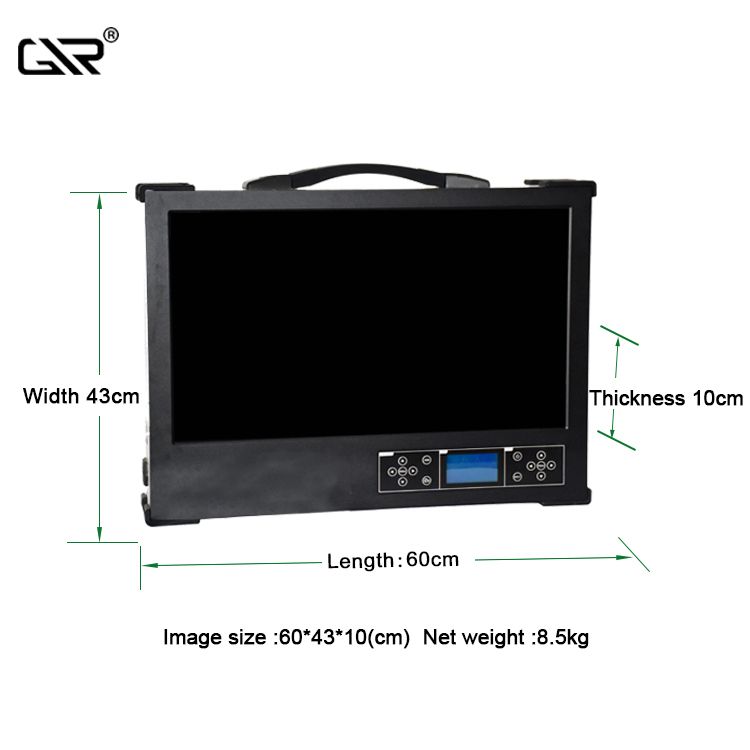

Monitor: 24''/17.3''monitor
Language: Chinese, English, Russian, French, Spanish, Portuguese can be switched

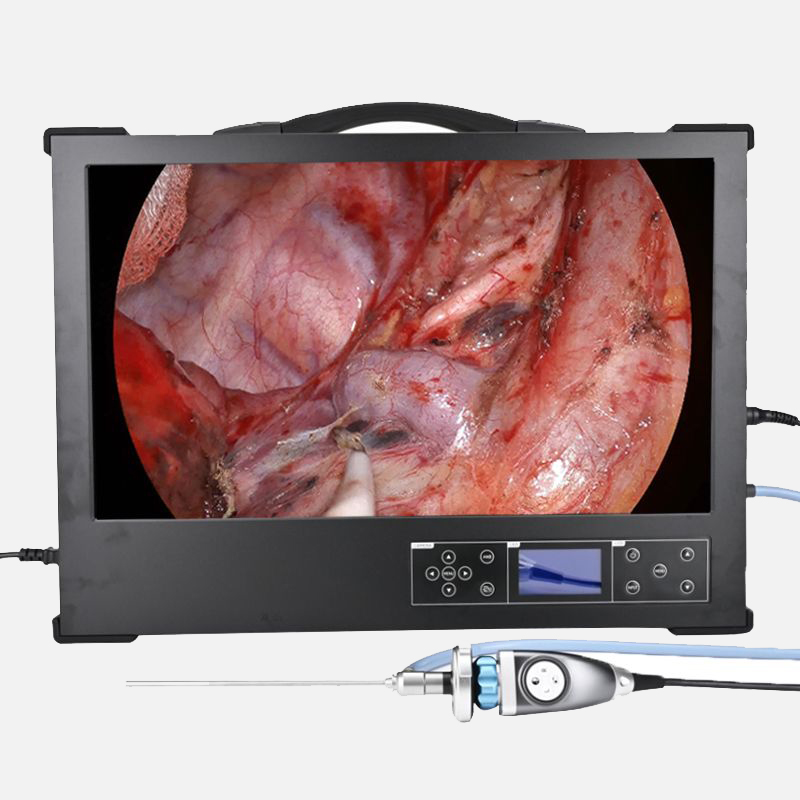

Image acquisition and display: Through the connection with the endoscope, it can collect clear images of the diseased parts or surgical areas in the body in real time, and display them on the 24-inch monitor, which is convenient for doctors to observe and diagnose
Image optimization: It has the functions of image magnification and enhancement, which can enlarge the acquired images and help to observe the tissue structure and lesion details in more detail; At the same time, the contrast, brightness and color of the image are optimized to make the image clearer and more distinguishable
Real-time transmission and collaboration: The image is transmitted to the monitor in real time for the surgical team members to watch at the same time, facilitating the collaboration and communication between the surgeon and the assistant
Video storage and playback: The operation or examination process can be videotaped and stored for subsequent review, teaching, case analysis and medical dispute resolution. The doctor can review the video at any time to carefully analyze the condition or procedure
Multi-mode output: Supports multi-mode output, such as HDMI+DVI+SDI+CVBS, to meet the connection requirements of different medical devices and display terminals, and is convenient for use in different scenarios.
Respiratory surgery
Thoracoscopy: It is used for the diagnosis and treatment of thoracic diseases, such as the etiology diagnosis of pleural effusion, the staging of lung cancer, and the diagnosis of pleural diseases. In thoracoscopic surgery, the 24-inch integrated endoscopic camera system can provide doctors with a clear surgical field of view to assist in lobectomy, mediastinal tumor resection and other operations.
Urinary system
Cystoscopy: It is an important method to diagnose bladder diseases, such as cystitis, bladder stones, bladder tumors, etc. The doctor observes the situation in the bladder through the cystoscope, and can also perform cystoscopic treatment, such as bladder stone lithotripsy, bladder tumor resection and so on.
Ureteroscopy: It can be used to diagnose and treat ureteral diseases, such as ureteral calculi and ureteral stricture. When lithotripsy is performed under ureteroscope, the camera system can help doctors to operate accurately, improve the success rate of operation and reduce complications.
Gynecology
Hysteroscopy: It is used to diagnose and treat lesions in the uterine cavity, such as endometrial polyps, uterine fibroids, uterine adhesions, and uterine malformations. In hysteroscopic surgery, the doctor can perform precise manipulation based on the image on the display screen to remove the diseased tissue and preserve the normal function of the uterus.
Laparoscopy: widely used in the diagnosis and treatment of gynecological diseases, such as ovarian cysts, uterine fibroids, endometriosis and so on. Laparoscopic surgery has the advantages of less trauma and quick recovery, and the 24-inch integrated endoscopic camera system can provide a clear view of the operation to ensure the safety and accuracy of the operation.
Ear, nose and throat
Nasal endoscopy: can clearly observe the structure and lesions of the nasal cavity and sinuses, such as sinusitis, nasal polyps, nasal tumors, etc., to provide basis for the diagnosis and treatment of diseases. In nasal endoscopic surgery, it helps doctors accurately remove diseased tissue and retain normal nasal structure and function.
Laryngoscope: Used to examine the lesions of the larynx, such as vocal cord polyps, vocal cord nodules, laryngeal cancer, etc. For some laryngeal diseases, minimally invasive surgery can also be performed under laryngoscope, such as vocal cord polypectomy.
Joint surgery
Arthroscopy: It is widely used in the diagnosis and treatment of joint diseases such as knee joint, shoulder joint and hip joint, such as articular cartilage injury, meniscus injury and ligament injury. Arthroscopic surgery through the insertion of arthroscopes and surgical instruments through small incisions, with the aid of the camera system, the doctor can clearly see the internal structure of the joint on the monitor, and carry out accurate repair and reconstruction surgery.
Q: Are you the manufacturer?
Yes, we have been specialized in the production of medical integrated endoscopic camera systems for 15 years. With a professional R & D team, advanced production equipment and strict quality inspection system, we are committed to providing high-quality endoscopic camera system products for the medical industry.
Q: Do you have ce, fda, ISO certificates?
Yes, we have CE, FDA, ISO, FCC, ROHS and other certificates.
Q: How long is your warranty?
Our warranty is 2 years, and we can also provide lifetime online service for our products.
Q: What are your payment options?
We accept t/ t bank transfer, Western Union, MoneyGram, Paypal, Sigue, L/C, cash and other payment methods.
