OEM Medical Flexible Rhinolaryngoscope

1. Multiple Models for Flexible Selection

Three scope diameters (2.8mm/4.3mm/5.8mm) with a uniform length of 380mm, catering to varied patient demographics and examination requirements.

Precision-engineered internal working channel diameters (1.2±0.04mm/2.2±0.04mm) facilitate instrument intervention, enhancing procedural efficiency.

2. High-Definition Imaging & Wide-Angle Field of View

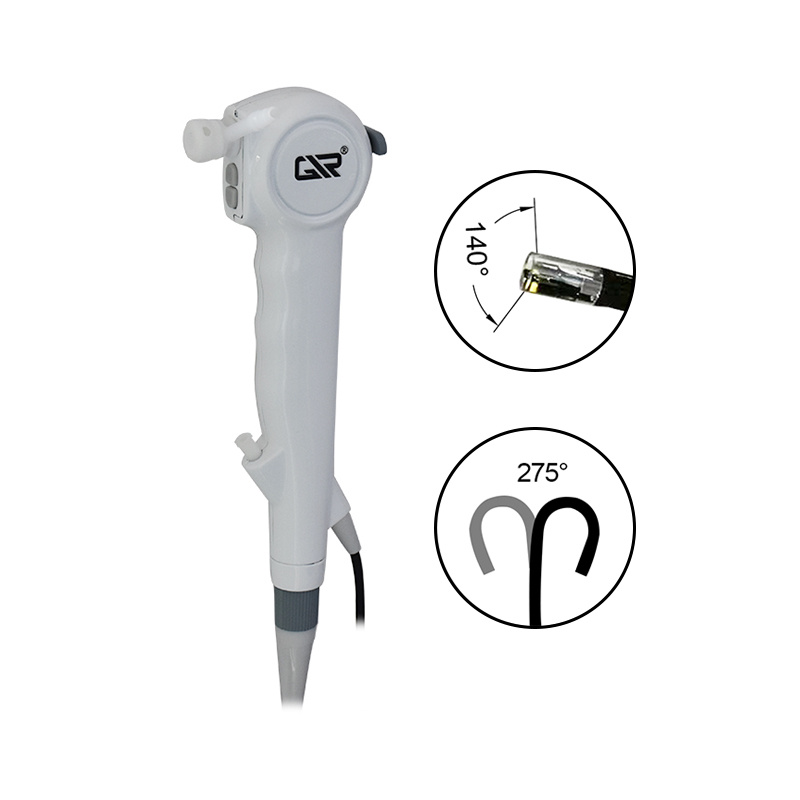

Configurable pixel options (16W/30W/50W) combined with a 140° ultra-wide field angle ensure comprehensive observation without blind spots.

Depth of field ranging from 5-150mm adapts to lesions at different depths while maintaining image clarity and stability.

3. Bi-Directional Bending Design for Enhanced Maneuverability

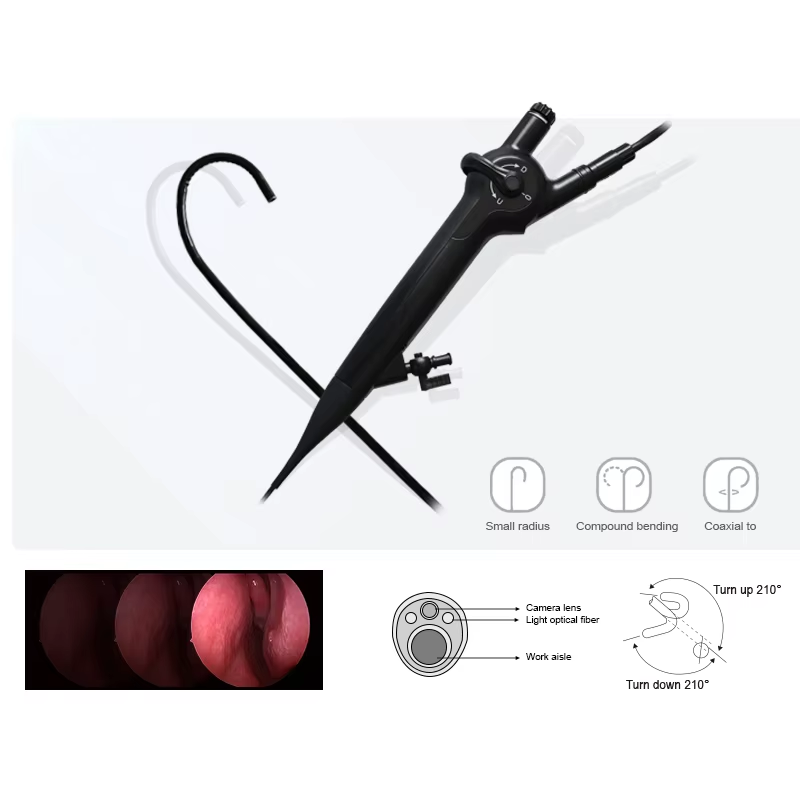

The scope supports bi-directional bending up to 210° (Turn up 210° & Turn down 210°), allowing access to complex anatomical regions and minimizing patient discomfort.

4. Multi-Scenario Compatibility

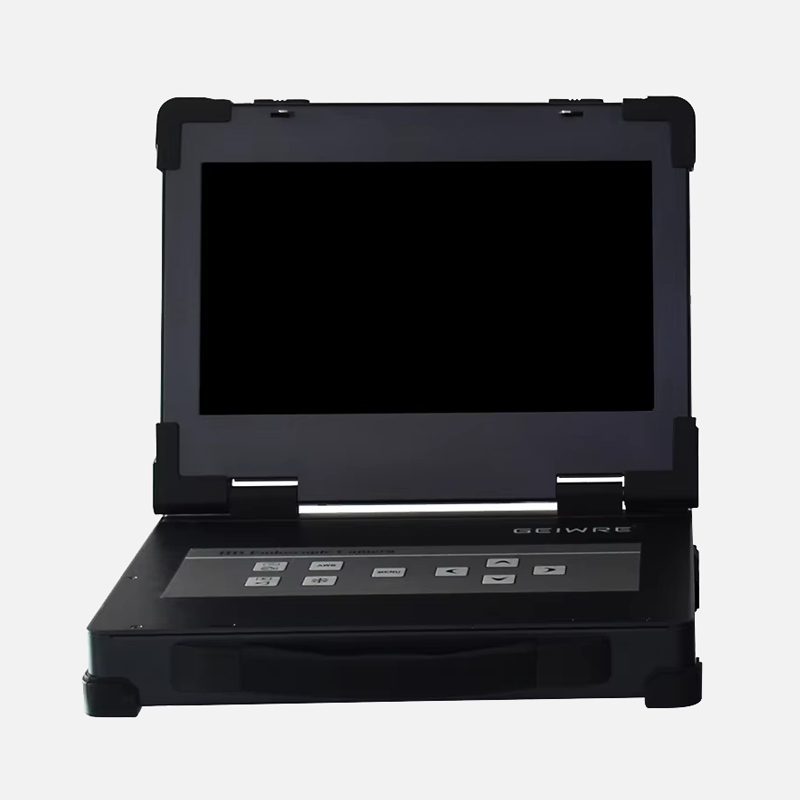

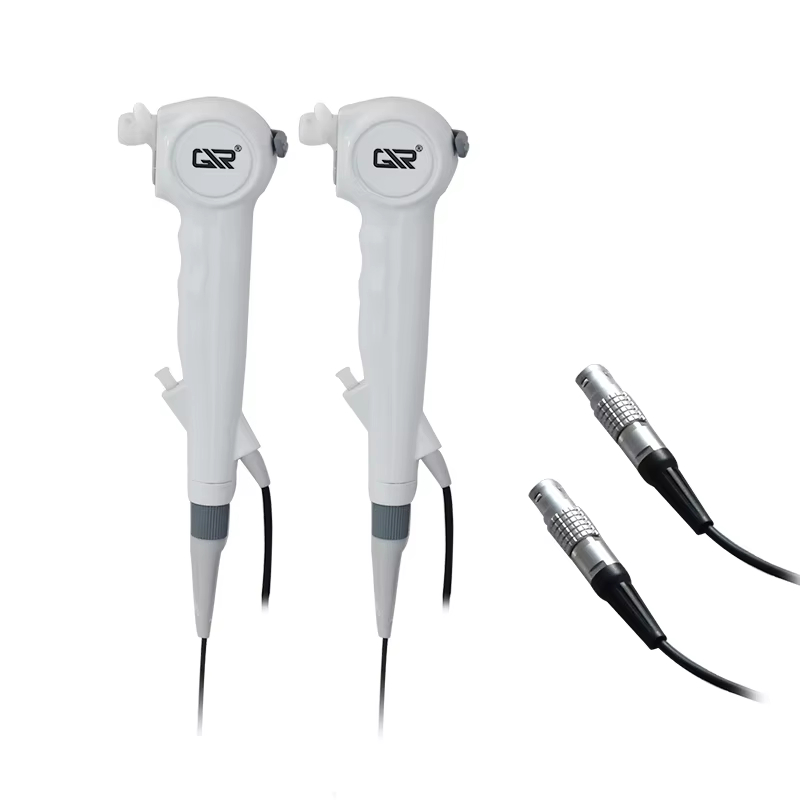

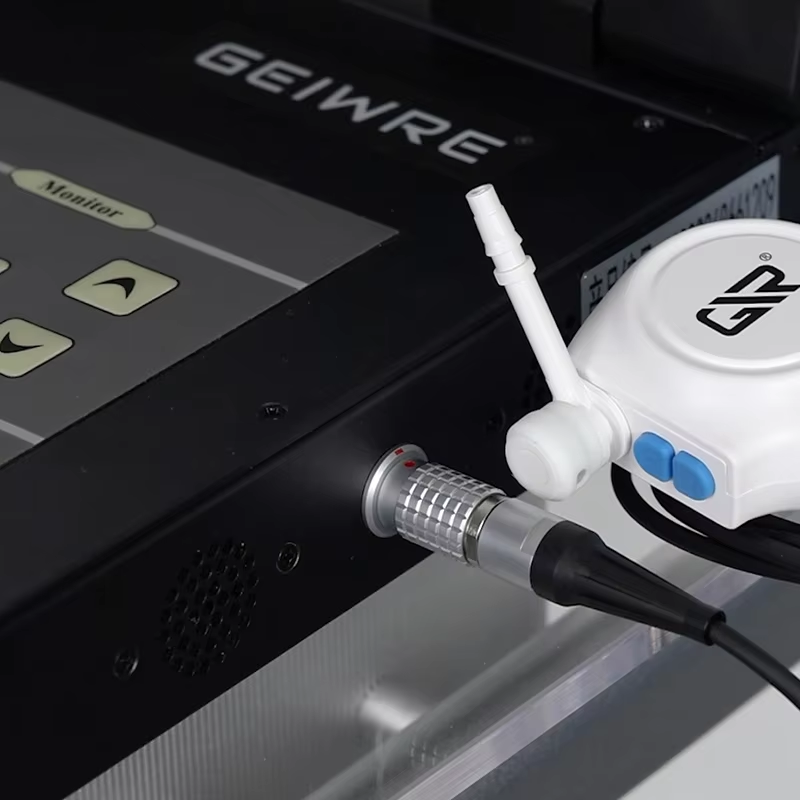

The aviation connector version pairs with a 13.3-inch portable processor, ideal for mobile diagnostics and operating theaters. The USB version offers plug-and-play compatibility with tablets and computers, enabling remote consultations and rapid diagnosis.

Disposable scopes eliminate cross-infection risks, while reusable models undergo rigorous sterilization protocols, balancing cost-effectiveness and safety.

• Otolaryngology Department: Routine nasal and throat examinations, diagnosis of vocal cord polyps, tumors, and other pathologies.

• Emergency Department: Rapid assessment of airway obstructions, traumatic bleeding, and acute conditions.

• Physical Examination Centers: Health screenings and occupational disease monitoring (e.g., dust exposure).

• Primary Healthcare Institutions: Portable design enhances diagnostic capabilities in resource-limited settings.
