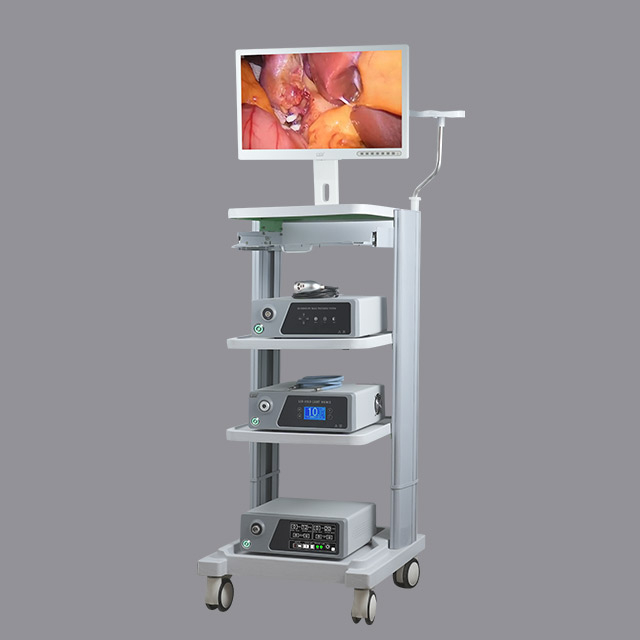

HD-810 1080P Endoscopic Camera System


Availability:

Quantity:



Inquire Add to Basket

HD endoscope is an advanced inspection equipment that integrates optical, electronic imaging and precision technology, mainly relying on optical lenses to capture images of the interior of objects. Light enters through the front objective lens, refracts and focuses through a series of lens groups, and forms a clear image on the surface of the imaging sensor CMOS. Subsequently, the sensor converts the optical signal into a digital signal, which is then processed by the image processor for digitization, noise reduction, color correction, etc., and finally presents a high-resolution and realistic picture in the display terminal, which plays a key role in many medical fields.

Model:
HD-810
Brand:
GEIWRE

Product Parameters

Product Advantages

Specific Application Department

Product Overview

The HD 810 1080P Endoscopic Camera System is a high-definition imaging device that integrates advanced camera technology and image processing functions. It can capture 1080P high-definition images, providing clear and detailed visual information for endoscopic diagnosis and treatment. The system has a fast image transmission speed and stable performance, which can truly reproduce the surgical field, facilitating doctors' observation, diagnosis, and operation. It is widely used in various endoscopic surgeries and is an important tool to improve the quality of surgery.

Product Specifications

Camera	2,000,000 Pixels 1/2.8 "CMOS
Resolution	1920 (H) *1080(V)
Definition	1080 Lines
Minimal illumination	0.3Lux
Video output	SDI,BNC,AOUT,AIN,DVI,HDMI,VGA,LAN,USB
Shutter speed	1/60~1/60000(NTSC),1/50~50000(PAL)
Camera cable	2.5m/Special lengths can be customized
Power	85 ~ 264VAC
Language	Chinese, English, Russian, Japanese and Spanish can be switched

Key Features

HD 1080P Resolution

Captures exceptionally sharp, high-definition images with a resolution of 1920x1080 pixels. This provides surgeons with crystal-clear and detailed visualization of tissue structures, vasculature, and anatomical nuances, which is critical for accurate diagnosis and precise surgical intervention.

Advanced Image Processing Technology

Incorporates a powerful image processing engine that enhances picture quality in real-time. Features such as automatic color calibration, noise reduction, and edge enhancement ensure consistent, true-to-life color reproduction and optimal image clarity, reducing eye strain for the surgical team.

High-Speed & Stable Image Transmission

Engineered for minimal latency and high-speed video transmission. This ensures a real-time, lag-free display of the surgical field, which is essential for dynamic procedures and precise instrument control. The system's stability prevents signal dropouts or interference during critical moments.

Superior Optical Performance

Designed with high-quality optical components to deliver a wide field of view, excellent depth of field, and minimal distortion. This allows for comprehensive visualization of the operative site, ensuring no detail is missed.

Versatile Clinical Applications

A comprehensive imaging solution suitable for a wide range of endoscopic procedures across multiple specialties, including laparoscopy, arthroscopy, ENT, urology, and gynecology. Its adaptability makes it a valuable asset in any modern operating room.

Ergonomic & User-Friendly Design

Features a lightweight, compact camera head that provides perfect balance and maneuverability. Designed for comfort during prolonged surgeries, it helps reduce surgeon fatigue. The intuitive interface and controls simplify operation for the entire surgical team.

Applications

General Surgery Endoscopy: Such as laparoscopic appendectomy, laparoscopic hernia repair, etc., helping doctors clearly observe the surgical field and perform precise operations.

Gynecological Laparoscopy: Used in ovarian cyst resection, uterine fibroid removal and other surgeries, providing clear images for gynecological operations.

ENT Endoscopy: Applied in nasal endoscopy, laryngeal endoscopy, etc., to assist in the diagnosis and treatment of diseases in the ear, nose, and throat.

Plastic Surgery Endoscopy: Suitable for endoscopic plastic surgeries such as breast augmentation and facial lifting, ensuring precise operation and reducing trauma.

Endoscopic Camera System

High resolution: Compared to traditional endoscopes, HD1920*1080 endoscopes can provide clearer and more detailed images. In high-definition image quality, tiny cracks, wear marks, pathological tissue and other details are revealed, allowing doctors to accurately judge the tissue status inside the cavity.
Accurate color reproduction: it can truly restore the color of the observed object, and the doctor can assist the diagnosis of the disease according to the difference between the normal color and the color after the lesion of the organ tissue.
Flexible field of view and Angle: Some HD endoscopes are equipped with an adjustable Angle lens, and with the appropriate field of view, the operator can freely explore all corners of the complex chamber, reducing the detection of blind areas.

Otolaryngology: nasal cavity, throat and other parts have complex structure and narrow space. High-definition endoscope can clearly show the status of mucosa, whether there are polyps, cysts or foreign bodies, helping doctors accurately diagnose sinusitis, nasal polyps, vocal nodules and other diseases. For example, before nasal endoscopic surgery, high-definition endoscopes are used to view the scope of lesions in the nasal cavity and adjacent relationships in detail, so that surgical planning is more scientific, and the lesions can be accurately removed with high-resolution images during the operation to reduce the damage to normal tissues.
General Surgery, Thoracic Surgery and Neurosurgery: In complex surgical areas such as thoracic surgery and neurosurgery, the HD endoscopic camera host's high-definition images and real-time transmission capabilities connected to the optical lens provide physicians with better surgical vision and guidance. Doctors can more accurately determine the location, size and shape of the lesion, thus improving the accuracy and safety of the surgery
Urology: In transurethral cystoscopy and ureteroscopy, high-definition endoscope enables doctors to clearly distinguish stones, tumors, resting meat and other lesions on the inner wall of the bladder and ureter, and assist in minimally invasive operations such as lithotripsy, lithotomy and tumor resection, which greatly reduces operation time and improves surgical safety.
Gynecology: hysteroscope, laparoscope and other gynecological commonly used endoscopes upgraded to high-definition version, in the diagnosis and treatment of gynecological diseases add wings. For example, to view endometrial polyps and submucosal myoma under hysteroscopy, HD image quality can confirm the relationship between lesion size, location and surrounding tissues, providing accurate basis for subsequent treatment such as electrical resection. During laparoscopic surgery, clear images of organs and blood vessels can help doctors operate instruments to complete complex operations such as removal of ovarian cysts and removal of ectopic pregnancy lesions, and reduce the risk of intraoperative bleeding.
General surgery: In laparoscopic cholecystectomy, appendectomy, and abdominal exploration operations, high-definition endoscopes can realistically present the anatomical relationship of intra-abdominal organs and tissues, allowing surgeons to operate more smoothly, reducing the probability of accidental damage to intestinal tract and blood vessels, and ensuring surgical quality and patient prognosis.
Thoracic surgery: thoracoscopic surgery is used for the diagnosis and treatment of lung diseases and mediastinal tumors. High-definition endoscope enables the surgeon to accurately distinguish between normal lung tissue and diseased sites. When treating small lung nodules and early lung cancer, it is easier to completely remove the lesions and retain more healthy lung tissue, thus improving postoperative respiratory function of patients.
