HD-310 Portable All-in-One Endoscope Camera System

Home » Products » Endoscope Camera Systems » HD Endoscope Camera Systems » HD-310 Portable All-in-One Endoscope Camera System

HD-310 Portable All-in-One Endoscope Camera System


Availability:

Quantity:



Inquire Add to Basket

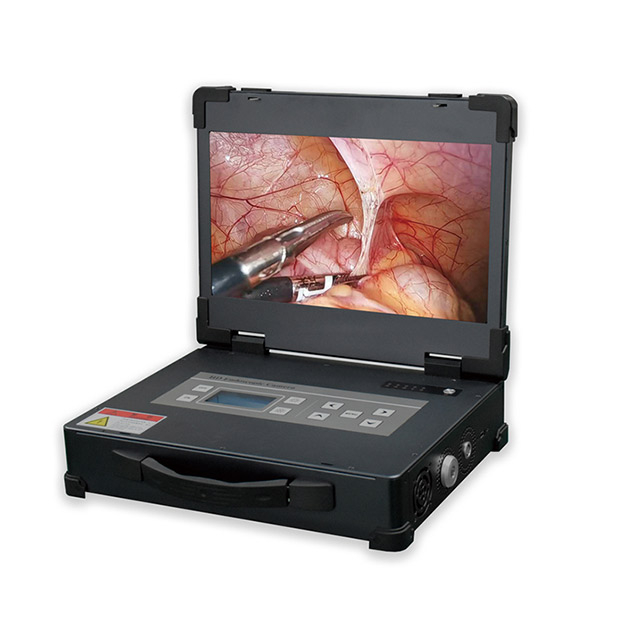

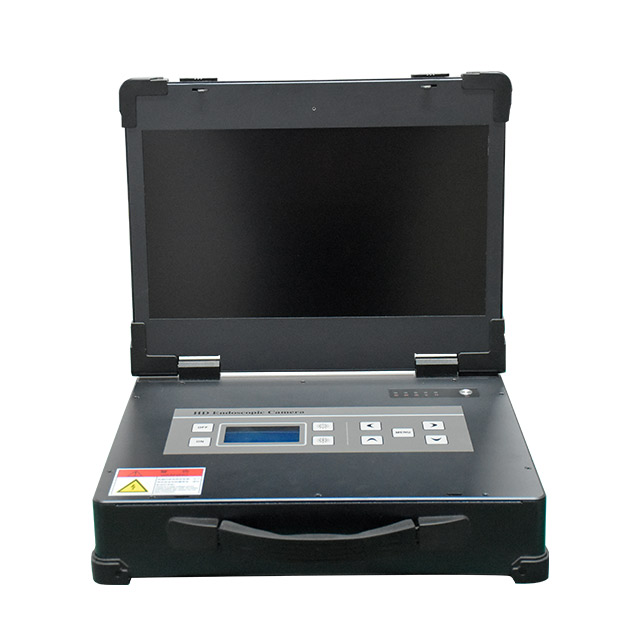

The HD-310 series medical endoscope is a high-definition electronic endoscope system designed for clinical diagnosis and minimally invasive surgery.

Equipped with a high-performance 1/3-inch Sony camera offering 1.8 megapixels, the endoscope delivers exceptional image clarity at a resolution of 1560×900, meeting the requirements of high-precision medical procedures. The system includes a 15.6-inch HD monitor and supports a multilingual interface (Chinese, English, Russian, Japanese, and Spanish), facilitating use in diverse medical settings worldwide.

A long-life 100W LED light source, rated for ≥50,000 hours, ensures consistent and reliable illumination during extended operations. The endoscope also features a customizable 2.5-meter handle cable and dual BNC video output interfaces, enhancing compatibility with a wide range of medical imaging systems and providing physicians with a flexible and efficient operating experience.

Model:
HD-310
Brand:
Geiwre

Product Parameters

Product Advantages

Specific Application Department

Product Overview

The HD-310 series is a high-definition medical endoscope system designed to support clinical diagnosis and minimally invasive surgical procedures.

At the core of the system is a high-performance 1/3-inch Sony camera with 1.8 megapixels, delivering exceptional image clarity at a resolution of 1560×900. This ensures precise and detailed visualization critical for accurate medical assessment. The endoscope is complemented by a bright 100W LED light source, boasting a long service life of ≥50,000 hours for consistent and reliable illumination during extended procedures.

A 15.6-inch high-definition monitor provides a clear and expansive view of the surgical field. The user interface

supports multiple languages—Chinese, English, Russian, Japanese, and Spanish—making the system adaptable for use in international medical settings.

For enhanced compatibility and convenience, the endoscope features a customizable 2.5-meter handle cable and dual BNC video output interfaces, allowing seamless integration with a wide range of external imaging and recording systems. Together, these features provide medical professionals with a versatile, efficient, and user-friendly tool for high-precision visualization.

Product Specifications

Model	HD-310
Camera	1800000 pixel 1/3" Sony
Resolution	1560(H)*900(V)
Definition	900 Lines
Handle wire	2.5m/Length customized
Video output	BNC,BNC
LED Lamp power	100W
Long life	≥50000Hours
Power	85 ~ 264VAC
Monitor	15.6“ monitor
Language	Chinese,English,Russian,Japanese and Spanish

Key Features

* Effortless White Balance Adjustment: Achieve optimal image quality effortlessly, allowing you to focus on what's important.

* One-Click Image Capture: Instantly freeze images with a single touch for quick and accurate documentation.

* Seamless Video Recording and Storage: Conveniently record and store high-quality videos, making data management a breeze.

* True-to-Life Color Rendering: Display colors accurately for precise diagnostics and better patient outcomes.

* Extended Depth of Field: Capture more detail with greater depth, providing a comprehensive view of your target area.

* Waterproof Camera Head: Designed for durability and hygiene, it allows for thorough soak disinfection.

* High Luminous Flux LED Light Source: Rapidly brightens and provides uniform illumination, ensuring energy efficiency and eco-friendliness.

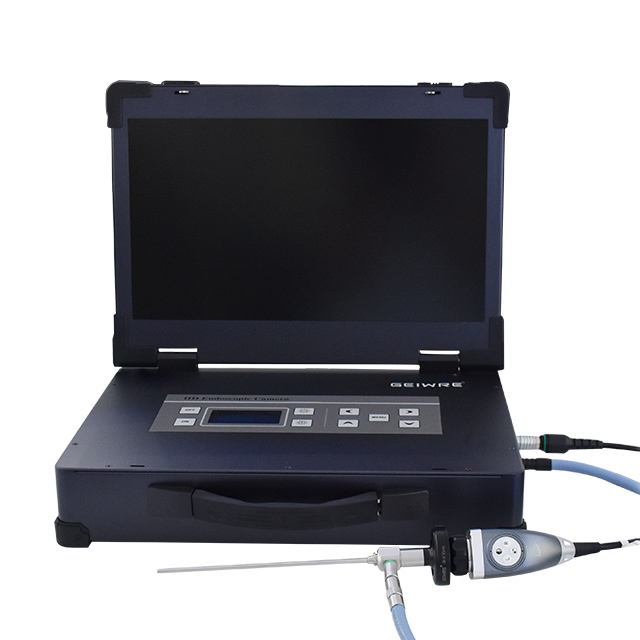

* Versatile Compatibility: This medical endoscope camera connects seamlessly with various rigid and flexible scopes, making it ideal for a wide range of surgical procedures, including laryngoscopy, nasoscopy, and arthroscopy.

Applications

1. ENT (Ear, Nose, and Throat)

Examines nasal cavities, pharynx, and ear canals, accurately identifying inflammation, foreign bodies, or space-occupying lesions, and supporting minimally invasive surgical navigation.

2. Urology

Applied in cystoscopy and ureteroscopy to diagnose conditions such as stones, tumors, or urethral strictures.

3. Gynecology

Used in hysteroscopy to observe endometrial conditions, assisting in the diagnosis of abnormal bleeding, polyps, or adhesions.

4. Pulmonology

Provides high-definition imaging during bronchoscopy, aiding in the diagnosis of lung infections, tumors, or airway stenosis.

5. General Surgery and Minimally Invasive Procedures

Delivers real-time HD imaging during laparoscopic and other minimally invasive surgeries, improving precision and minimizing tissue damage.

1. High-Definition Imaging System

Sony high-performance camera with 1560×900 resolution delivers sharp, detailed images, aiding in accurate lesion identification.
900-line high-definition imaging minimizes artifacts and noise, enhancing diagnostic reliability.

2. Professional Medical Light Source

100W high-brightness LED cold light source provides uniform and stable illumination, preventing tissue burns and ensuring safety during prolonged procedures.
Ultra-long lifespan (≥50,000 hours) reduces maintenance costs and frequency of replacements.

3. Ergonomic Design

15.6-inch HD monitor offers a wide field of view, reducing eye strain for medical professionals.
Customizable handle cable length (standard 2.5 meters) adapts to various surgical scenarios.
Dual BNC video outputs allow connection to medical imaging workstations or recording devices, facilitating consultations and teaching.

4. Multilingual Support

Built-in interface in Chinese, English, Russian, Japanese, and Spanish for ease of use in international medical settings.

5. Safety and Stability

Wide voltage input (85–264VAC) ensures stable operation across different regional power standards.
The plastic version (HD-310 Plastic) is lightweight, corrosion-resistant, and easy to sterilize, complying with infection control requirements.

1. ENT (Ear, Nose, and Throat)

Examines nasal cavities, pharynx, and ear canals, accurately identifying inflammation, foreign bodies, or space-occupying lesions, and supporting minimally invasive surgical navigation.

2. Urology
