Orthopedic Rigid Endoscope & Supporting Surgical Instrument Kits for Minimally Invasive Joint & Spine Surgery

Rigid optical endoscope is the core visual carrier of all orthopedic minimally invasive endoscopic operations, while matched stainless steel surgical instruments determine surgical efficiency. Our factory independently develops and produces full series arthroscope, spinal foraminoscope and complete supporting instrument kits, supporting mixed wholesale and OEM customized packaging for global medical device traders and clinical institutions.

1. Two Main Categories of Orthopedic Rigid Endoscope

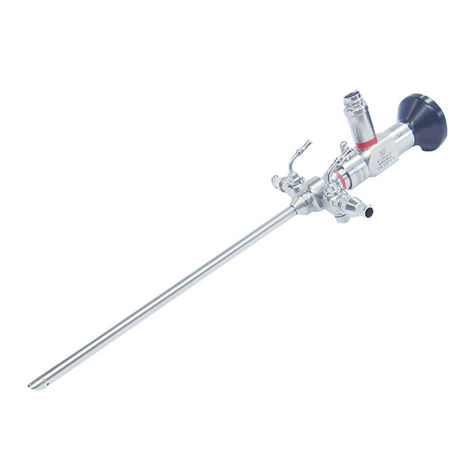

1.1 Joint Arthroscope (for Knee, Shoulder, Ankle Joint Surgery)

• Size specifications: Outer diameter 2.7mm / 4.0mm; mainstream viewing angle: 30°, optional 0° /70°

• Material & optical performance: Imported medical stainless steel tube, German optical glass, patented rod lens system, built-in direction marker, sapphire scratch-proof lens, clear and bright field of view

• Sterilization compatibility: Supports high-temperature high-pressure autoclave, low-temperature plasma and liquid immersion disinfection, long service life for repeated clinical use

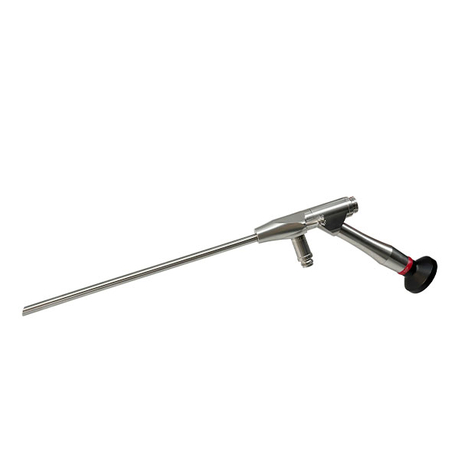

1.2 Spinal PELD Foraminoscope (Lumbar Discectomy Surgery Special)

• Size specifications: Outer diameter 5.3mm /5.9mm /6.3mm /6.9mm /7.3mm /10mm; standard viewing angle 30°, small batch customizable 0°/15°

• Structural design: Larger instrument working channel to pass bone burr, rongeur and radiofrequency electrode for spinal bone grinding and nucleus removal

• Material standard consistent with arthroscope, wear-resistant and corrosion-resistant for long-term repeated sterilization

2. Complete Supporting Surgical Instrument Kits

2.1 Arthroscopic Joint Surgery Instrument Set

Standard kit contains: Trocar cannula & puncture needle, meniscus grasping forceps, synovial punch forceps, biopsy forceps, angled scissors, straight/curved retractors, various shaped cutters, hollow curettes, 3mm/5mm orthopedic probes. All instruments adopt seamless imported stainless steel without coating, anti-corrosion and easy cleaning.

2.2 PELD Spinal Endoscopy Instrument Kit

Full spinal instrument series covers all surgical steps of transforaminal lumbar discectomy:

1. Channel establishment: Multi-stage graduated dilators, trocar working cannula (flat mouth, angled mouth, long window, half-open window optional)

2. Bone resection: Multiple size bone drills, ring curettes, diamond bone burr sleeves

3. Tissue grasping & cutting: Spinal rongeur, grasping forceps, angled cutting forceps, spring scissors

4. Auxiliary tools: Position guide wire, puncture needle, perforating needle, nerve probe, stripping dissector, bone chisel, surgical mallet, positioning ruler

All spinal instruments support separate bulk purchasing or full set matching with foraminoscope host, flexible combination according to customer’s market demand.

3. Factory Wholesale & Customization Service

We provide separate sales of single rigid endoscope, individual surgical instruments and full packaged instrument kits, support OEM customized laser logo on scope body and instrument handle, customized export neutral packaging for distributors without brand mark.

All orthopedic rigid endoscopes and instruments comply with international medical device production standards, match mainstream 4K/HD endoscopic camera hosts in the market. If you are a medical accessory wholesaler, contact us to get instrument price list and mixed batch wholesale discount policy.

FAQ

Q: What sizes of arthroscope and foraminoscope do you supply?

A:Arthroscope: 2.7mm/4.0mm, 0°/30°/70°; Foraminoscope: 5.9–10mm, mainly 30°. All adopt sapphire scratch-resistant lens.

Q: What sterilization methods fit your rigid orthopedic endoscopes?

A: Support autoclave high-temp sterilization, low-temperature plasma and liquid soaking, repeated clinical use.

Q: Can I buy single instruments instead of full kits?

A: Yes. We sell separate arthroscopic forceps, spinal dilators, bone burrs, probes, or complete customized kits as you need.

Q: Are your orthopedic rigid scopes compatible with other brands’ camera hosts?

A: Our hard scopes match mainstream HD/4K endoscopic camera systems on the market, plug-and-play for most brands.
