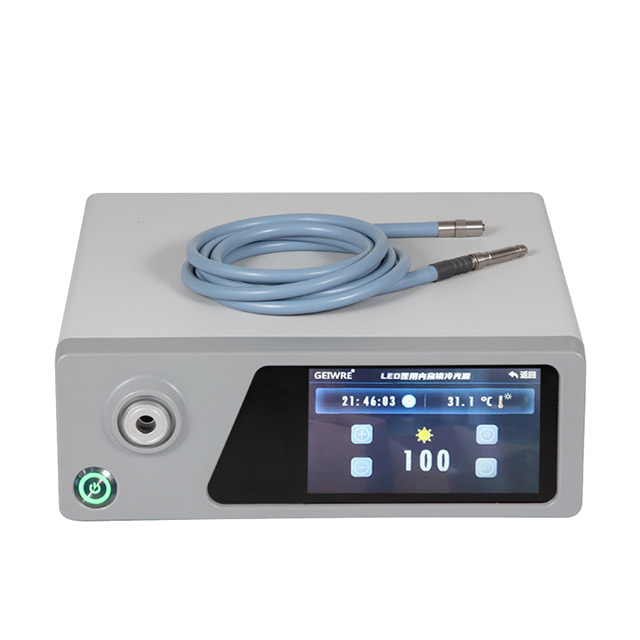

Medical Endoscope LED Cold Light Source


Availability:

Quantity:



Inquire Add to Basket

The Medical Endoscope LED Cold Light Source is a high-performance illumination device designed for endoscopic procedures in minimally invasive surgery, diagnostics, and therapeutic applications. Utilizing advanced LED technology, it provides bright, stable, and shadow-free lighting, ensuring optimal visibility during medical examinations and operations.

Model:
HJ-30
Brand:
GEIWRE

Product parameters

Product Advantages

FAQ

Product Overview

The Medical Endoscope LED Cold Light Source is a critical auxiliary device in endoscopic diagnosis and treatment. It adopts advanced LED technology to provide stable, high-brightness, and low-heat light output, which is essential for clear visualization during endoscopic procedures. Compared with traditional halogen light sources, it has significant advantages such as longer service life, lower energy consumption, and more uniform light emission. This light source is compatible with a variety of endoscopes, making it widely used in various endoscopic surgeries and examinations.

Product Specifications

Power supply	AC240/85V+10%e
Rated power input	No more than 250 va
Safety classification	1 BF type
LED lamp power	80W/100W/120W/140W
Lamp life	≥40000h
Color temperature	3000K~7000K
Luminous flux	>100 lm(No limit)
Brilliance control	0-100 continuously adjustable
Continuous working hours	12h
Input fuse	F3AL250V φ5x20
External dimension	310x300x130mm

Applications

Gastrointestinal Endoscopy: Provides clear illumination for colonoscopy, helping doctors accurately observe the mucosal conditions of the digestive tract.

Respiratory Endoscopy: Used in laryngoscopy and bronchoscopy to assist in the diagnosis and treatment of respiratory diseases.

Urological Endoscopy: Applied in cystoscopy and ureteroscopy, ensuring clear visualization during the examination and treatment of urinary system diseases.

Gynecological Endoscopy: Suitable for hysteroscopy and laparoscopy, facilitating the diagnosis and treatment of gynecological diseases.

Cold Light Source

High Brightness and Stability: Utilizes high-performance LED chips to ensure sufficient light intensity, with a brightness adjustment range of 0-100%, which can be flexibly adjusted according to different surgical needs and endoscopic types. The light output is stable, avoiding the problem of light flicker that may occur in traditional light sources, ensuring clear and continuous imaging.

Cold Light Emission: The special heat dissipation design ensures that the light source generates little heat during operation, effectively reducing the risk of tissue damage caused by excessive heat, protecting the patient's body tissues and the endoscope itself.

Long Service Life: The LED light source has a service life of up to 50,000 hours, which is much longer than that of traditional halogen bulbs (usually only 1,000-2,000 hours), greatly reducing the frequency of replacement and maintenance costs.

Energy Saving and Environmental Protection: With low power consumption, it can save a lot of energy compared with traditional light sources. At the same time, it does not contain harmful substances such as mercury, which is more in line with environmental protection requirements.

Easy Operation and Maintenance: Equipped with an intuitive control panel, the operation is simple and convenient. The modular design makes maintenance and repair easier, reducing the downtime of equipment.

Q: What is the service life of the LED bulb?

A: The service life of the LED bulb is usually up to 50,000 hours under normal use conditions, which is much longer than that of traditional halogen bulbs.

Q: Can this light source be compatible with all types of endoscopes?

A: It is compatible with most standard endoscopes on the market, but it is recommended to check the compatibility with the specific endoscope model before purchase.

Q: Is the brightness adjustment stepless?

A: Yes, the brightness can be adjusted steplessly from 0-100%, which can meet different surgical lighting needs.

Q: How to deal with the heat generated during use?

A: The product is equipped with an efficient heat dissipation system, which can quickly dissipate the heat generated, ensuring that the light source works at a normal temperature and avoiding heat damage to the equipment and patients.
