Product Overview
The electronic gastroscope is a cutting - edge medical device. Boasting an outstanding optical system, it provides a wide field of view and sharp, vivid images. The insertion mechanism, designed with user - friendliness in mind, enables smooth and flexible maneuvering. A standout feature is its electronic staining function. This innovative addition allows for a more detailed and distinct visualization of the mucosal layers, facilitating the early detection and precise assessment of potential abnormalities. Complemented by a high - performance video processor and cold light source, it offers a reliable and efficient solution for gastrointestinal endoscopic procedures.
Resuable Flexible Gastroscope
Outer diameter of main hose ≤Φ9.8mm
Inner diameter of clamp pipe ≥Φ2.8mm
Working length:1050mm
Total length :1350mm
Field of view ≥140 º(direct view)
Observation depth ≥2-100mm
Resolution:2,000,000 pixels
Bending angle ≥ 210º upward ≥ 100º downward
Left and right ≥ 100 º
Resuable Flexible Colonscope
Outer diameter of head end sф12.8mm
Inner diameter of clamp pipe 3.75mm
Resolution:2,000,000pixels
Working length :1650mm
Total length ≥1950mm
Field of view ≥140 °(direct view)
Observation depth: 2-100mm
Bending angle :≥180° upward / 160° downward / ≥ 100° left （L) / ≥ 150°,right (R)150°
Medical irrigation pump
lrrigation pressure setting range:15mmHg~700mmHg
lrigation flow setting range:10mL/min~1500mL/min
Suction flow setting range:1000mL/min~30000mL/min
Suction pressure setting range:100mmHg~400mmHg
Key Features
HD image processor ： powerful, brightness, colour and contrast adjustable from 0-100 levels, supports VGA and HDMI HD signal output
Resolution: 2,000,000 pixels
Viewing angle: 140 º(direct view)
Auto /Manual White Balance: Auto/Manual
Sensor technology: CMOS
Video output:VGA and HDMI,USB
Image video storage: USB stick for direct photo and video saving
Light Source Parameter : NBI, LED
5Color:White light / Green light / Blue light /Purple light / Violet light Red light LED power:140W
Spectrum Range: 400-700nm
Illumination:≥200,000 Lx
Life: 20,000 hours
Color Temperature：≥5500K
Air pressure and gas flow: 30~60KPa, air flow: 4~10L/min Air pump adjustment:0 to 3 is adjustable
Power supply ：AC 85~264V
AI HD imaging joint platform(working station)
1. USB for connecting printer to print the report
2.Taking photos, freezing images, and making annotations on the photos taken.
3. Checking reports, editing and storing case records
4. Wireless expansion function for hard drives, ensuring worry-free storage.
5. Implement features such as query retrieval and follow-up visits.
6. It allows for real-time playback of vedio recordings and access to previous case images and other relevant data.
High-Definition Imaging: Features Full HD and 4K resolution capabilities (up to 2 million pixels) for clear, detailed visualization.

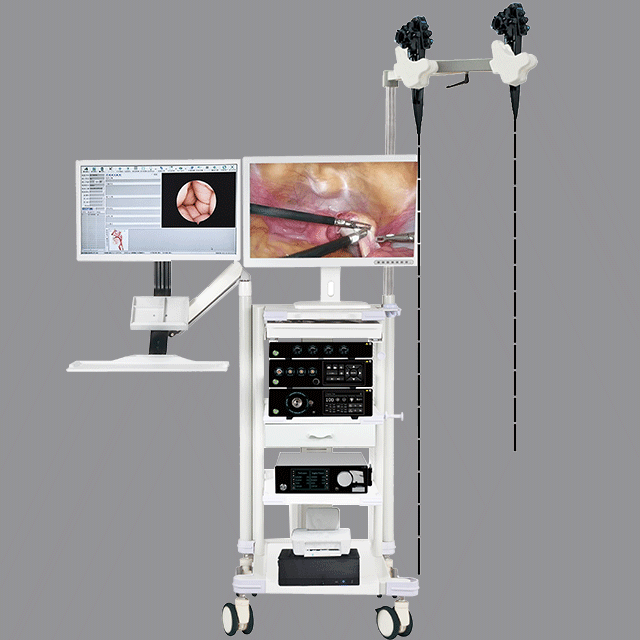

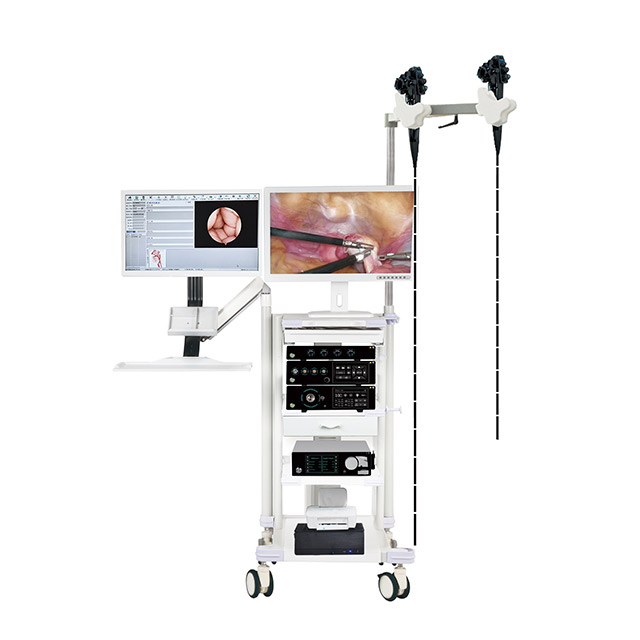

Comprehensive & Flexible System: Offers a complete solution including reusable colonoscopes and gastroscopes, a high-resolution medical monitor, a mobile medical cart, an irrigation pump, and a reporting workstation.
Reusable & Durable Design: The flexible endoscopes are built for repeated use, providing long-term value.
Enhanced Maneuverability: Endoscopes feature wide, multi-directional bending angles for improved access and navigation during procedures.
Ergonomic & Mobile Workstation: The medical cart is made of durable aluminum alloy, features silent swivel wheels and brakes for easy, quiet movement, and is designed to support dual monitors and endoscope storage.
Integrated Workflow: The system includes an irrigation pump with adjustable pressure/flow and a dedicated computer workstation for editing and printing reports, streamlining the procedural workflow.
Inflammatory diseases: It can accurately judge the type, degree and scope of inflammation such as gastritis, gastric ulcer, esophagitis, enteritis, etc. For example, through the gastroscope can observe whether the gastric mucosa congestion, edema, erosion, judge the severity of gastritis; Enteroscopy can check the intestinal mucosa for ulceration and bleeding, and assist in the diagnosis of ulcerative colitis and Crohn's disease.
Neoplastic diseases: It is an important means to find and diagnose gastrointestinal tumors. It can directly observe whether there is a tumor in the gastrointestinal tract, judge the size, shape, and location of the tumor, and can also conduct pathological examination of the tissue to determine whether the tumor is benign or malignant, such as early gastric cancer and colorectal cancer can be found and diagnosed under gastroenteroscopy.
Bleeding diseases: When there is unexplained hematemesis, black stool or blood in the stool, gastroenteroscopy can quickly determine the bleeding site, such as gastric ulcer bleeding, esophageal variceal bleeding, intestinal vascular malformation bleeding, etc., to provide basis for follow-up treatment.
Other diseases: It can also be used to diagnose gastrointestinal polyps, diverticula, foreign bodies, congenital malformations and other diseases. For example, colonoscopy can find polyps in the intestine, judge their size and shape, and assess the risk of cancer. The gastroscope can find foreign bodies in the esophagus or stomach, such as fish bones and bones mistakenly swallowed.
Disease treatment
Polyp resection: For polyps in the gastrointestinal tract, endoscopic resection can be performed through gastroenteroscopy. Common methods include high-frequency electrocoagulation resection, argon ion coagulation, endoscopic submucosal dissection, etc., which has little trauma and fast recovery, and can effectively prevent malignant polyp transformation.
Hemostatic treatment: For gastrointestinal bleeding, a variety of hemostatic measures can be taken under gastroenteroscopy, such as injecting hemostatic drugs, spraying hemostatic agents, using hemostatic clips to clamp bleeding vessels, heat probe to stop bleeding, etc., to stop bleeding quickly and avoid serious consequences such as shock caused by bleeding.
Early tumor treatment: For early gastrointestinal tumors, endoscopic mucosal resection or endoscopic submucosal dissection can be performed to completely remove the diseased tissue to achieve radical treatment, while preserving the normal function of the gastrointestinal tract and improving the quality of life of patients.
